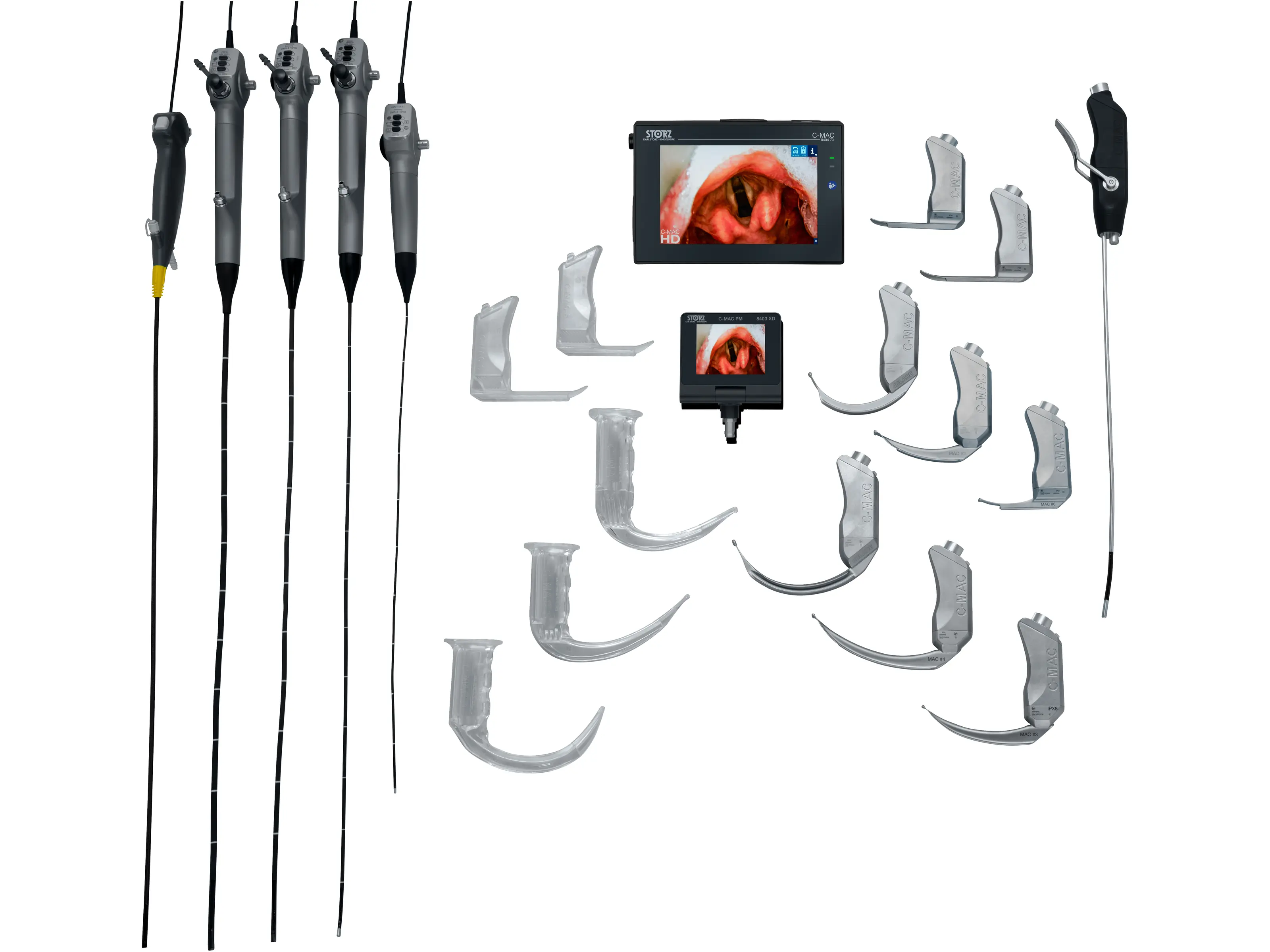

C-MAC VS, Set - 1
C-MAC VS, Set - 2
C-MAC VS, Set - 3
C-MAC VS, Set - 4
- 1
- 2
- 3
- 4
Item no: 10331BXK

C-MAC VS, Set

Quantity:
Scope of delivery

Product details

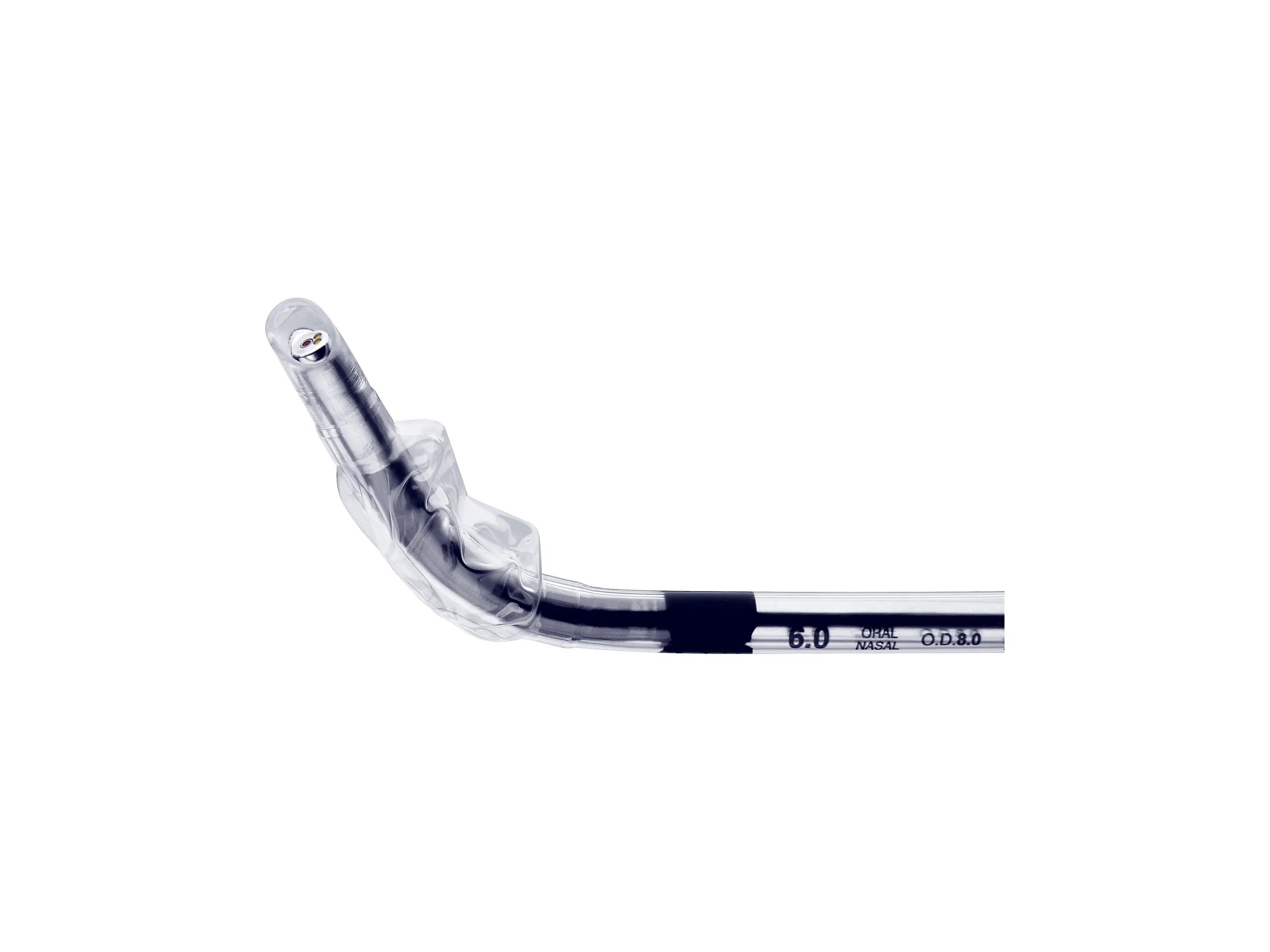

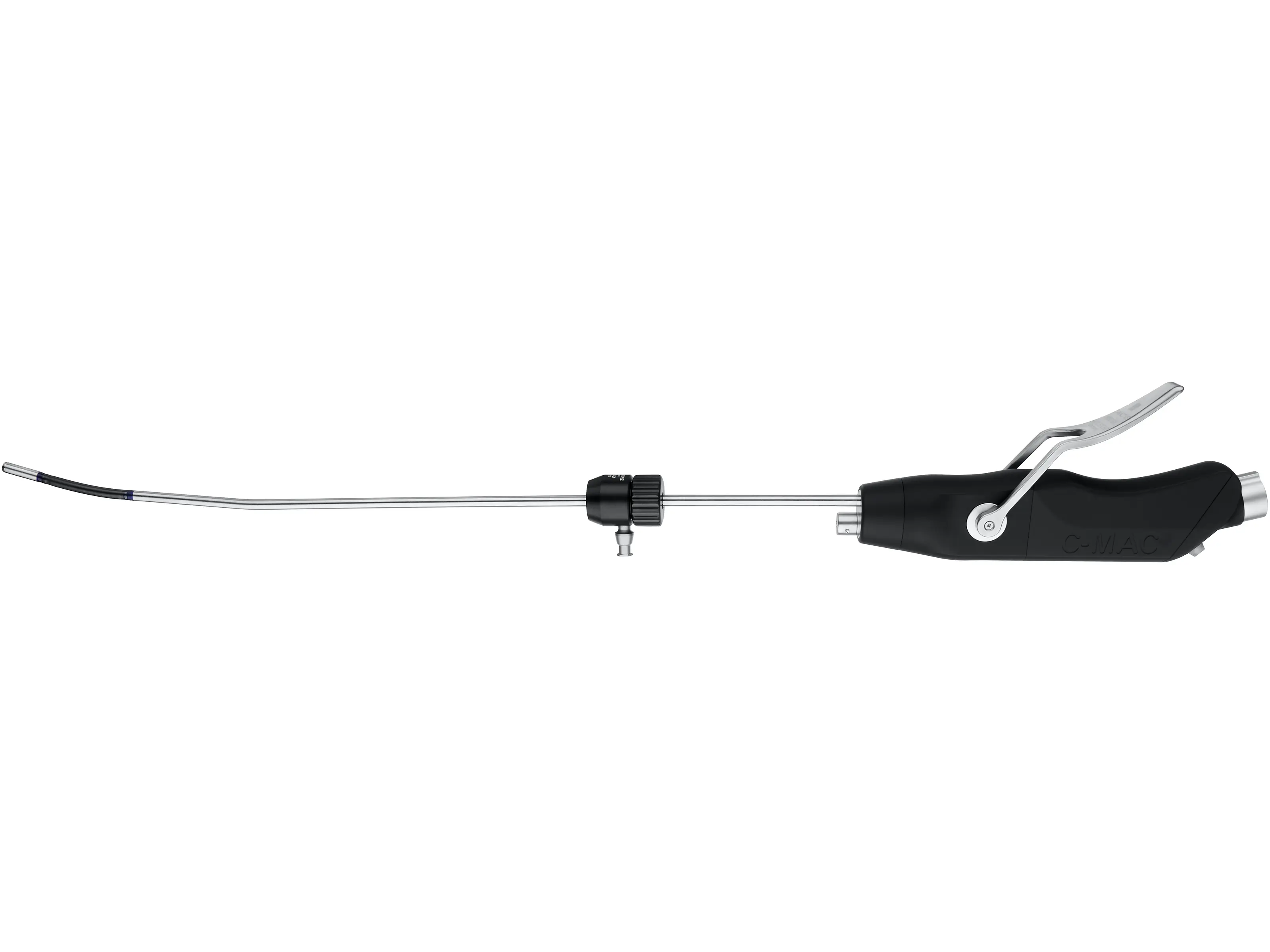

The C-MAC® Video Stylet – The Hybrid Intubation Endoscope


  • Suitable for in-hospital emergency situations and for patients with a restricted mouth opening
  • Continuous O2 flow via tube adaptor between the tube and endoscope
  • Technical details
  • Documents & Films
  • Product group / field of application
Laryngoscope shapeStylet
Outer diameter at distal end5.5 mm

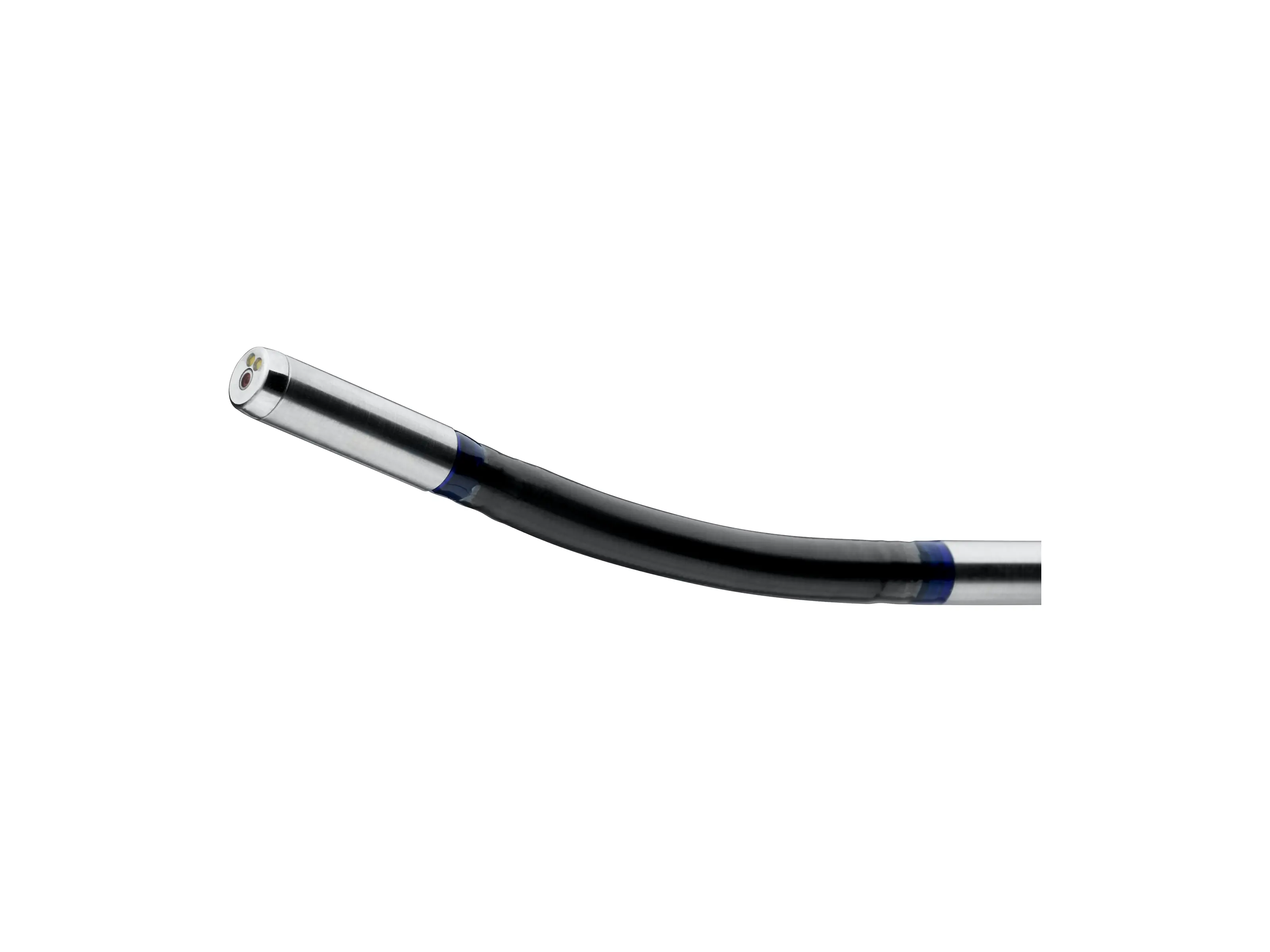

Shape of distal endWith deflectable tip
Recommended ETT diameter as of6 mm
System interfaceC-MAC®
Documentation optionYes
Direction of view100°
Working length41 cm
Resolution300 x 400 px
Length60 cm
Weight445 g
Deflection down0°
Deflection up90°
Angle of view10°
Deflection up with tube60°
