Item no: 8404ZXK

C-MAC Monitor for CMOS Endoscopes, Set

Quantity:
Scope of delivery

Product details

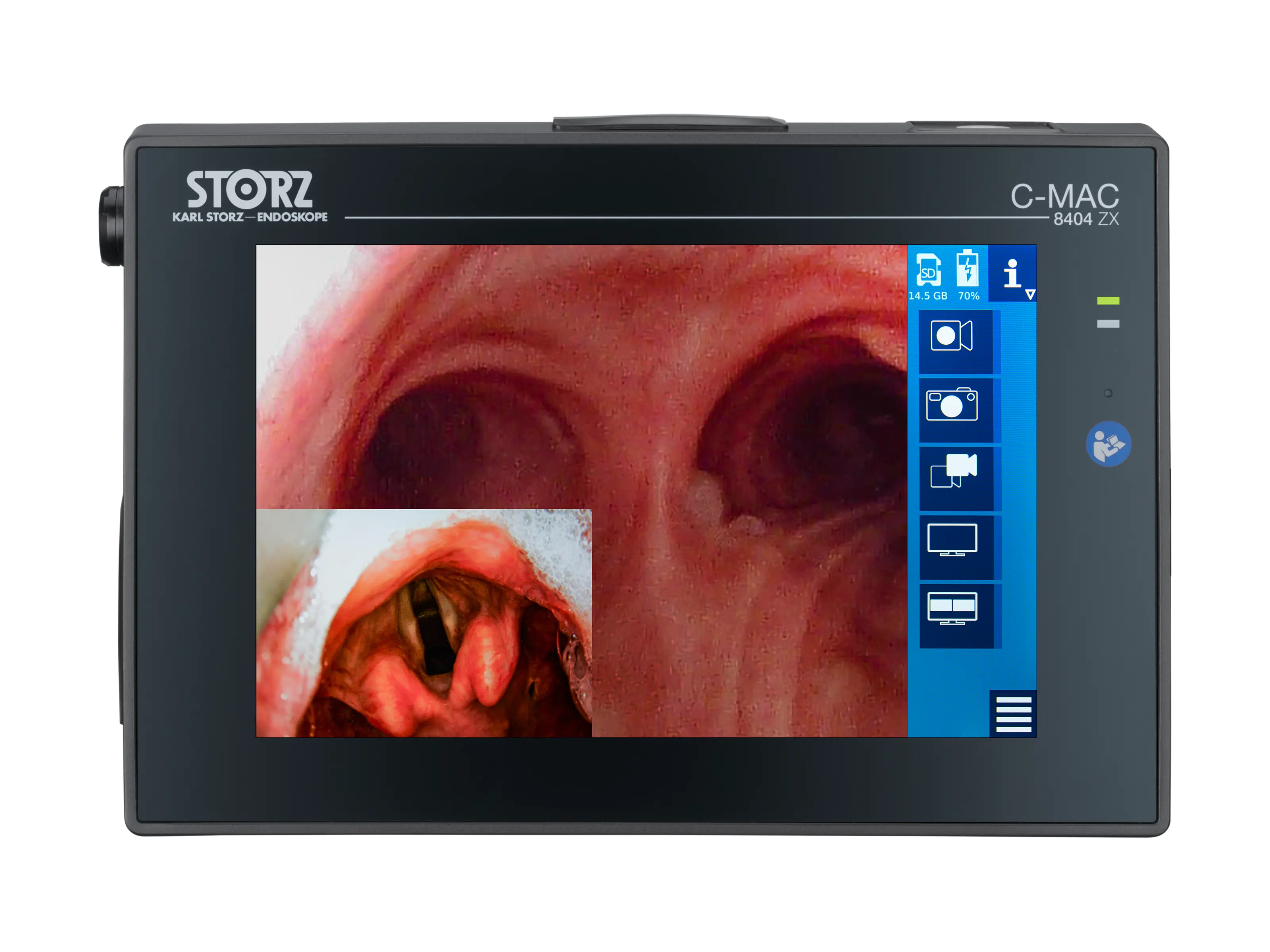

The C-MAC® HD Monitor – The Heart of the C-MAC® System


  • Interactive FULL HD touch screen that can also be used with gloves
  • Picture-in-Picture and Side-by-Side modes
  • Integrated microphone allows audio comments to be added to the videos
  • Technical details
  • Documents & Films
  • Product group / field of application
System interfaceC-MAC®
Screen diagonal8"
Resolution1920 x 1200 px
Wide angle display160°
Video outputHDMI
Number of video inputs2
USB port type2.0
IP protection classIP54 (splash-water protected)
Rechargeable battery, battery typeChargeable Li-ion battery
Storage medium for documentationSD card, transferable to USB flash drive
Battery operating time in battery mode up to120 min
Power ManagementCapacity indicator of chargeable Li-ion battery
Playback optionCaptured images and video sequences
VESA mount75 x 75 mm
Screen width150 mm
Screen height94 mm
Length230 mm
Width155 mm
Depth57 mm
Weight1250 g
Input voltage12 V
