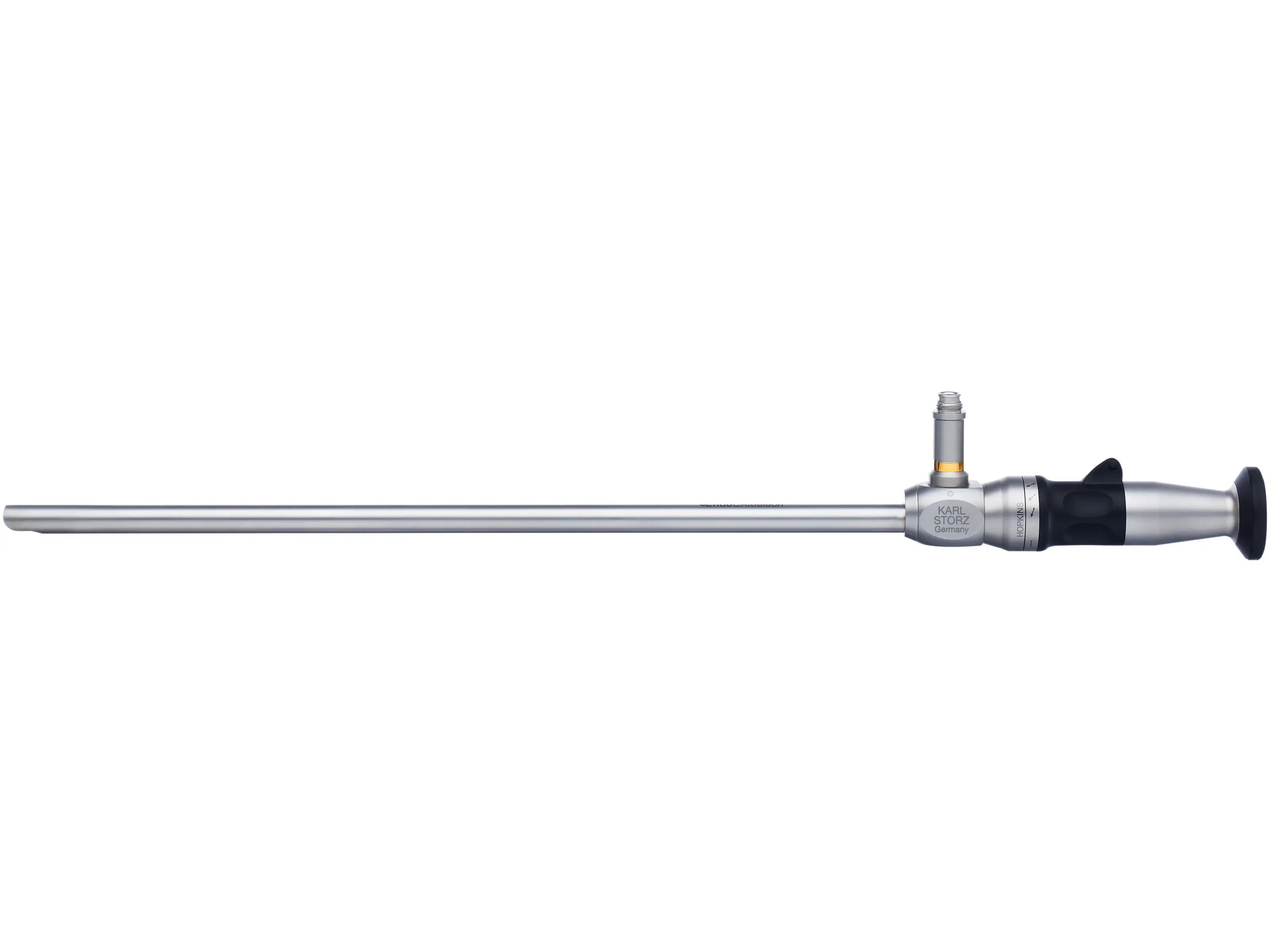

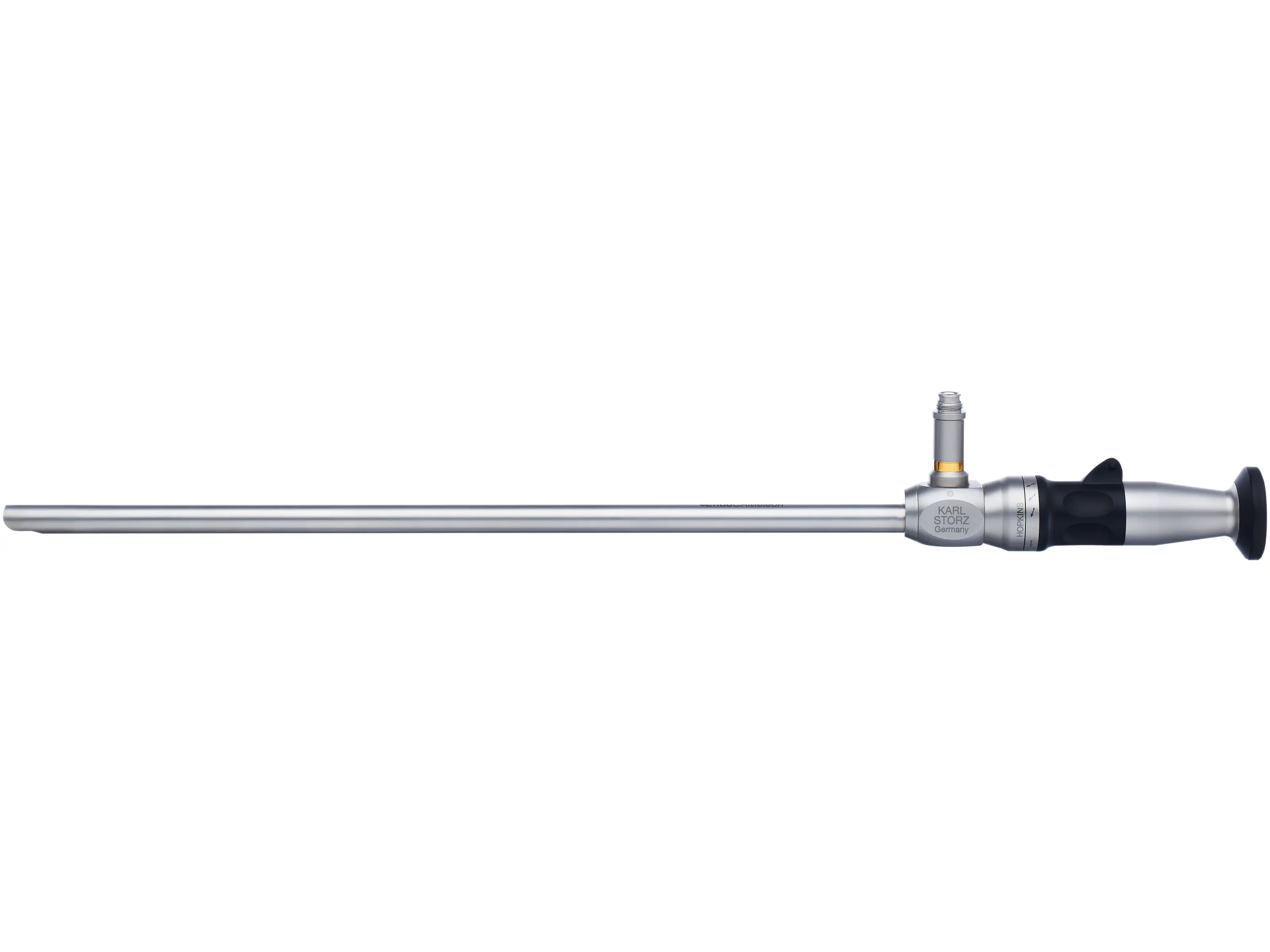

ENDOCAMELEON HOPKINS Telescope
Quantity:Product details

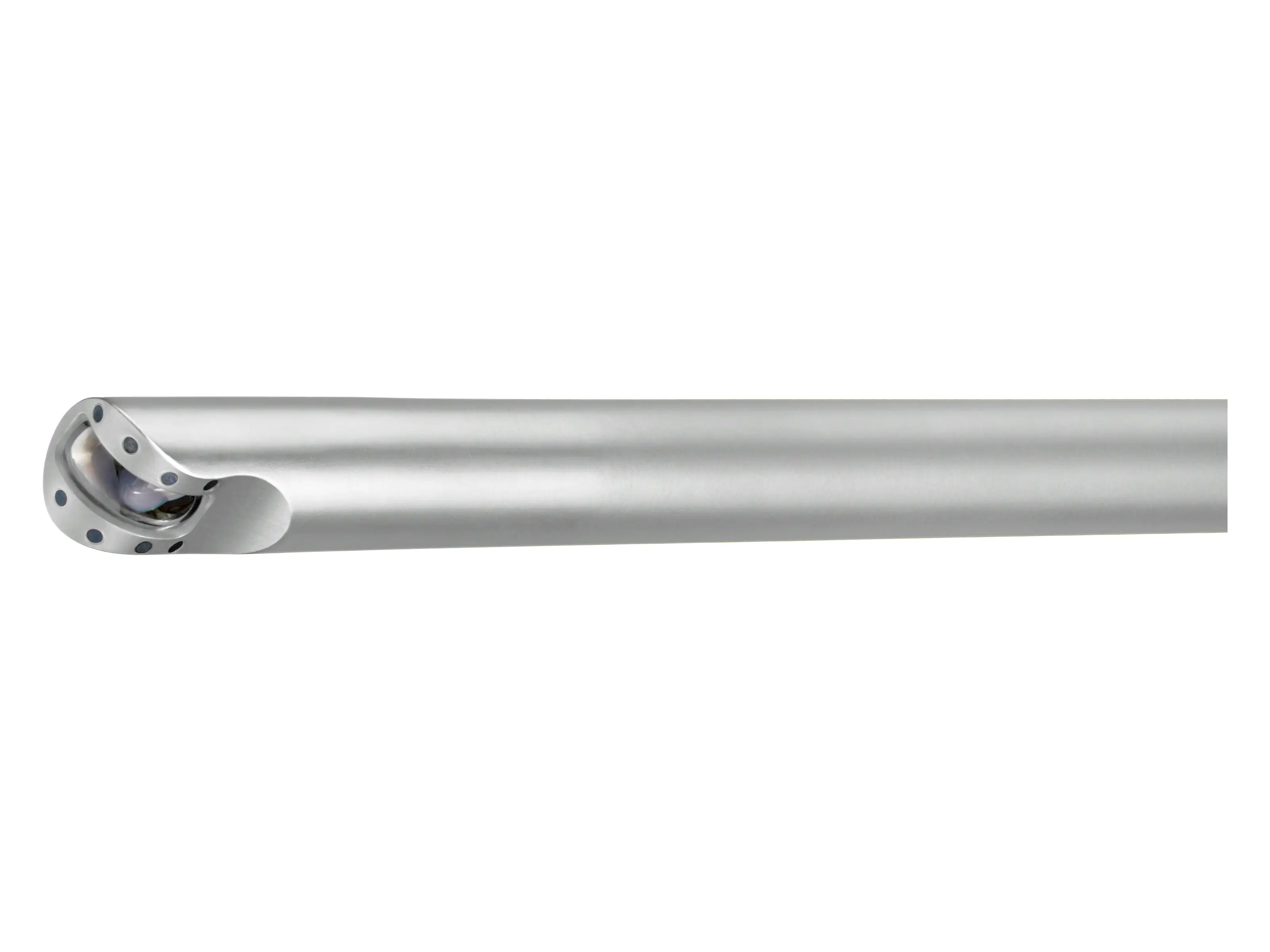

Telescope with variable direction of view
The ENDOCAMELEON® provides surgeons with a great deal of flexibility and overcomes the limitations that are traditionally associated with rigid telescopes. The viewing direction of the ENDOCAMELEON® can be variably adjusted between 0° and 90°. This allows visualization of areas that are difficult to access with standard telescopes. Ergonomics and handling are the same as a conventional KARL STORZ HOPKINS® telescope.
The ENDOCAMELEON® technology does not require extra intracorporal space due to the external moving parts. Image alignment merely requires turning the control wheel. As the ENDOCAMELEON® is equipped with a standard eyepiece, the variable direction of view benefits all standard camera systems.
Thanks to the HOPKINS® rod lens system, ENDOCAMELEON® also offers image quality that enables a useful application of three-chip cameras or HD camera systems.
- Variable direction of view 0°-90°
- Combines the familiar handling of the HOPKINS® telescope with the advantages and potential of a telescope offering various directions of view
- Adjustment knob for selecting the direction of view
- Rigid sheath with a diameter of 10 mm
- Enhanced illumination *
- Particularly well suited for anatomically tight cavities/spaces
- Recommended in combination with IMAGE1 S™ (CLARA and CHROMA modes)
- Technical details
- Documents & Films
- Product group / field of application
Outer diameter | 10 mm |
Working length | 31 cm |
Direction of view | Variable, 0° – 90° |
Light transmission medium | Fiber optic light transmission |
Adjustability of direction of view | Via a control wheel |
For trocar sizes | 11 mm |
Color code | Gold |
Autoclavable | Yes |
Related product group
Field of application / System
- Laparoscopic general and visceral surgery Bariatric surgery
- Laparoscopic general and visceral surgery Hernia surgery
- Laparoscopic general and visceral surgery Esophageal surgery
- Laparoscopic general and visceral surgery Colorectal surgery Abdominal approach
- Laparoscopic general and visceral surgery Hepato-pancreato-biliary surgery Liver surgery
- Laparoscopic general and visceral surgery Hepato-pancreato-biliary surgery Pancreatic surgery
- Laparoscopic general and visceral surgery Hepato-pancreato-biliary surgery Spleen surgery
- Laparoscopic general and visceral surgery Colorectal surgery Transanal approach TaTME
- Laparoscopic general and visceral surgery Hepato-pancreato-biliary surgery Gallbladder and bile duct surgery Cholecystectomy
- Laparoscopy Diagnostic laparoscopy
- Laparoscopy Adhesiolysis
- Laparoscopy Adnexal surgery
- Laparoscopy Myoma enucleation
- Laparoscopy Endometriosis surgery
- Laparoscopy Pelvic floor surgery
- Laparoscopy Lymphodonectomy
- Laparoscopy Hysterectomy Total Laparoscopic Hysterectomy (TLH)
- Laparoscopy Hysterectomy Laparoscopic Supracervical Hysterectomy (LASH)
- Laparoscopy Hysterectomy Laparoscopically Assisted Vaginal Hysterectomy (LAVH)
