Item no: TH120

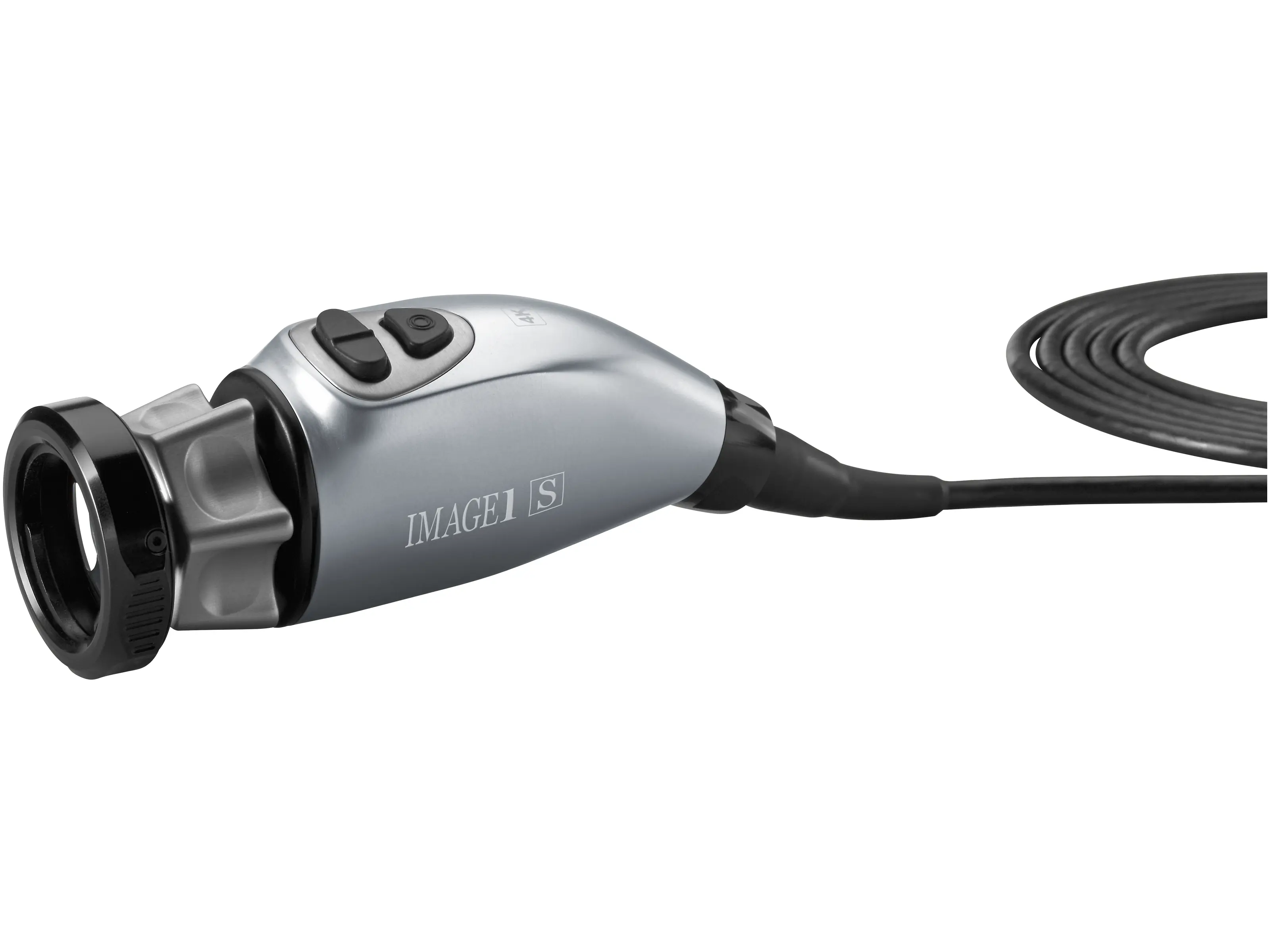

IMAGE1 S 4U
Quantity:Product details
- 4K image resolution
- Brighter and more detailed images than previous model
- S-Technologies available
- Ergonomic design
- Part of the IMAGE1 S™ camera platform
- Compatible with IMAGE1 S™ 4U-LINK
- Technical details
- Documents & Films
- Product group / field of application
| Image sensor resolution | 4K |
| Resolution | 3840 x 2160 px |
| Connection | 4U-Line |
| Autoclavable | No |
| Fluorescence imaging (NIR/ICG) | No |
| Fluorescence imaging (Blue Light Imaging, BLI) | No |
| S-Technologies | CLARA, CHROMA, SPECTRA A + B |
| Frame rate | 50 / 60 Hz |
| Image sensor type | CMOS |
| Number of image sensors | 1 |
| Zoom function | 3x digital zoom |
| Focal length | 18 mm |
| Width | 46 mm |
| Height | 37 mm |
| Length | 133 mm |
| Weight | 210 g |
| Cable length | 300 cm |
| Cable detachable | No |
| Cable routing | Angled |
| Adaptive zoom | Yes, in combination with TC304 and TC201 |
| Camera head buttons | 3 Buttons, 2 freely programmable |
| Grip mechanism | Standard eyepiece adaptor |
| Soakable | Yes |
| H2O2 (hydrogen peroxide) | Yes |
| Wipe disinfection | Yes |
| Sterile concept | Single-use covers |
| Scanning method | Progressive scan |
| Zoom levels | 1x, 1.25x,1.5x, 1.75x, 2x, 2.5x, 3x |
