Item no: TL400

Power LED RUBINA, OPAL1 NIR/ICG

Quantity:
Scope of delivery

Product details

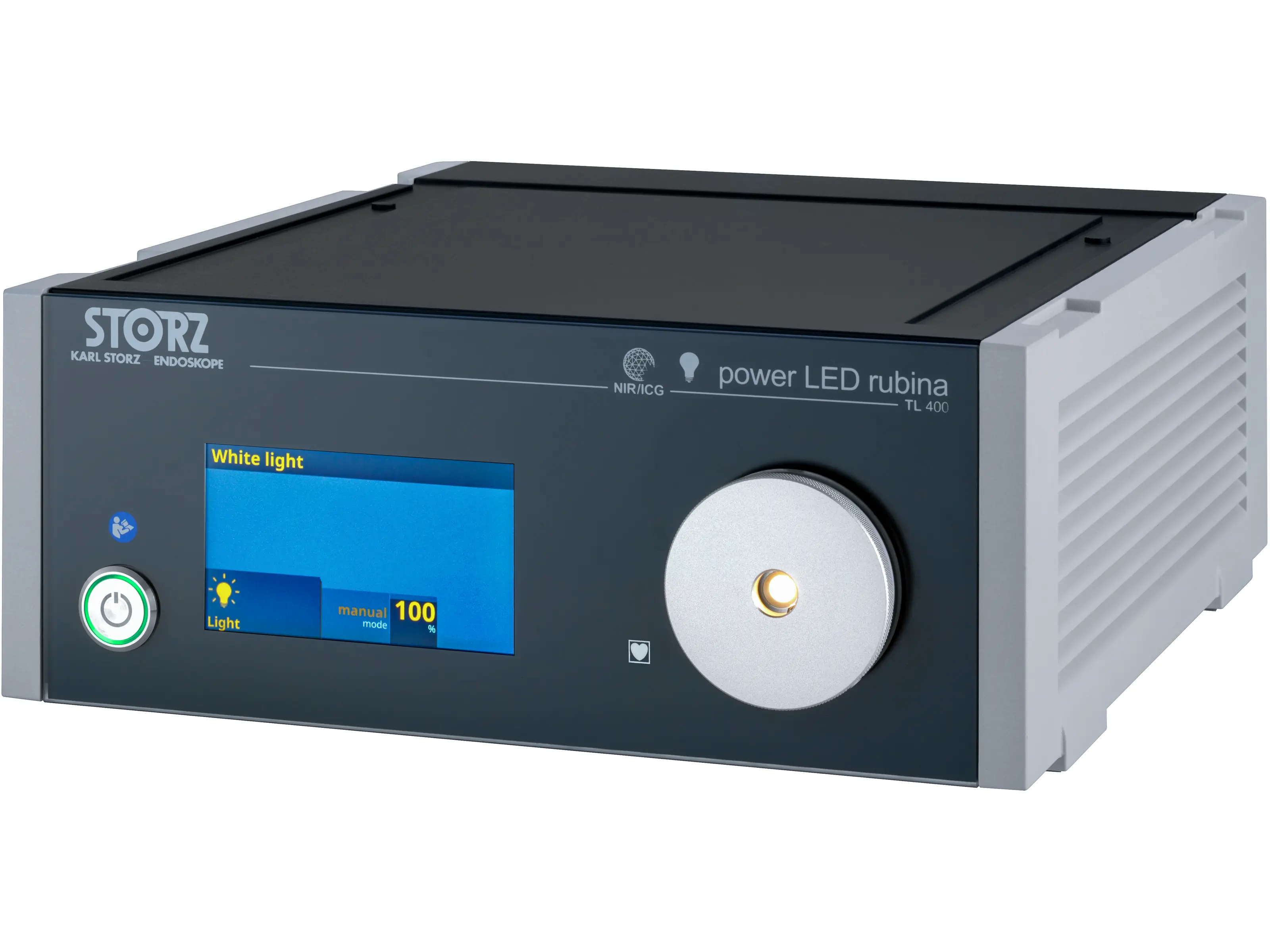

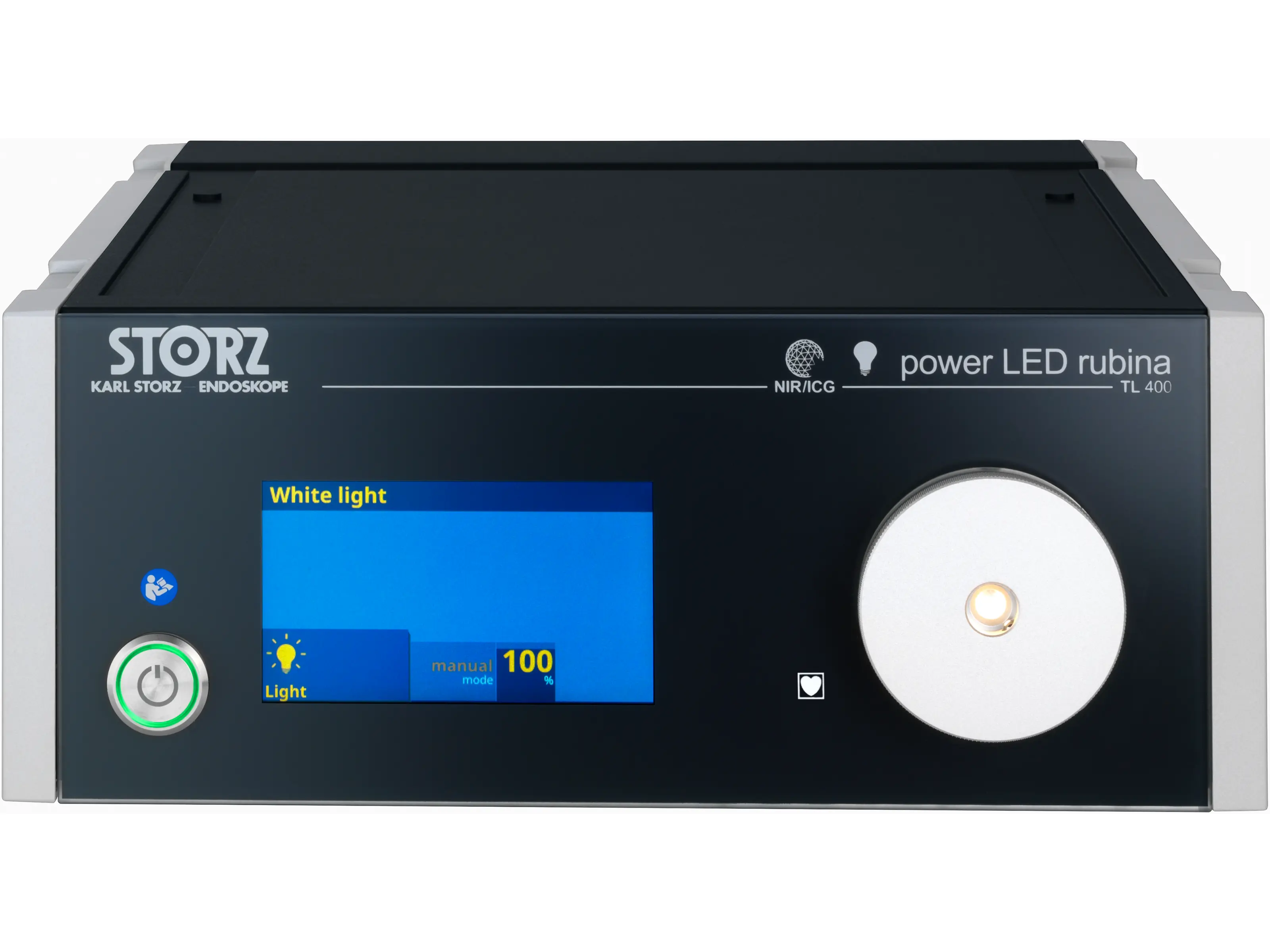

POWER LED Rubina® – The New LED Light Source for White Light and NIR/ICG Applications

Power, efficiency, durability and flexibility are the hallmarks of the POWER LED Rubina® cold light source based on LED technology. The light source can be used for white light as well as fluorescence applications for displaying NIR/ICG or autofluorescence in the near infrared range.


  • Laser-free LED light source for white light and NIR/ICG excitation
  • OPAL1® NIR/ICG technology with new functionalities
  • Min. 30,000 hours of lamp service life
  • Straightforward user interface thanks to intuitive touch screen
  • Constant light intensity throughout the entire service life
  • Very low volume
  • Technical details
  • Documents & Films
  • Product group / field of application
Fluorescence imaging (NIR/ICG)Yes
Fluorescence imaging (Blue Light Imaging, BLI)No
Control via touch screenYes
Illumination technologyLED
Average lamp service life30000 h
Integrated pump for air insufflationNo
Color temperature approx.5700 K
Unit communication KS HIVE®Yes
Unit communication SCBNo
Light intensity adjustmentAutomatic via HIVE and manual
Weight7.4 kg
Width305 mm
Height120 mm
Depth370 mm
Power supply100 - 125 / 220 - 240 VAC
IP protection classIPX0
Electrical protection classProtection class 1
KARL STORZ light outletYes
Power consumption220 VA
Line frequency50/60 Hz
Degree of safetyCF
Degree of safety with KARL STORZ light cablesCF-Defib
Wipe disinfectionYes
Electrical protection class1
