Item no: TC100

TELECAM C3

error_outlineAvailable in the following languages: DE, EN, ES, FR, IT, PT, RU, SE.
Please note the required language in the offer list.
The keyboard in the corresponding language is then part of the scope of delivery.
Quantity:

Product details

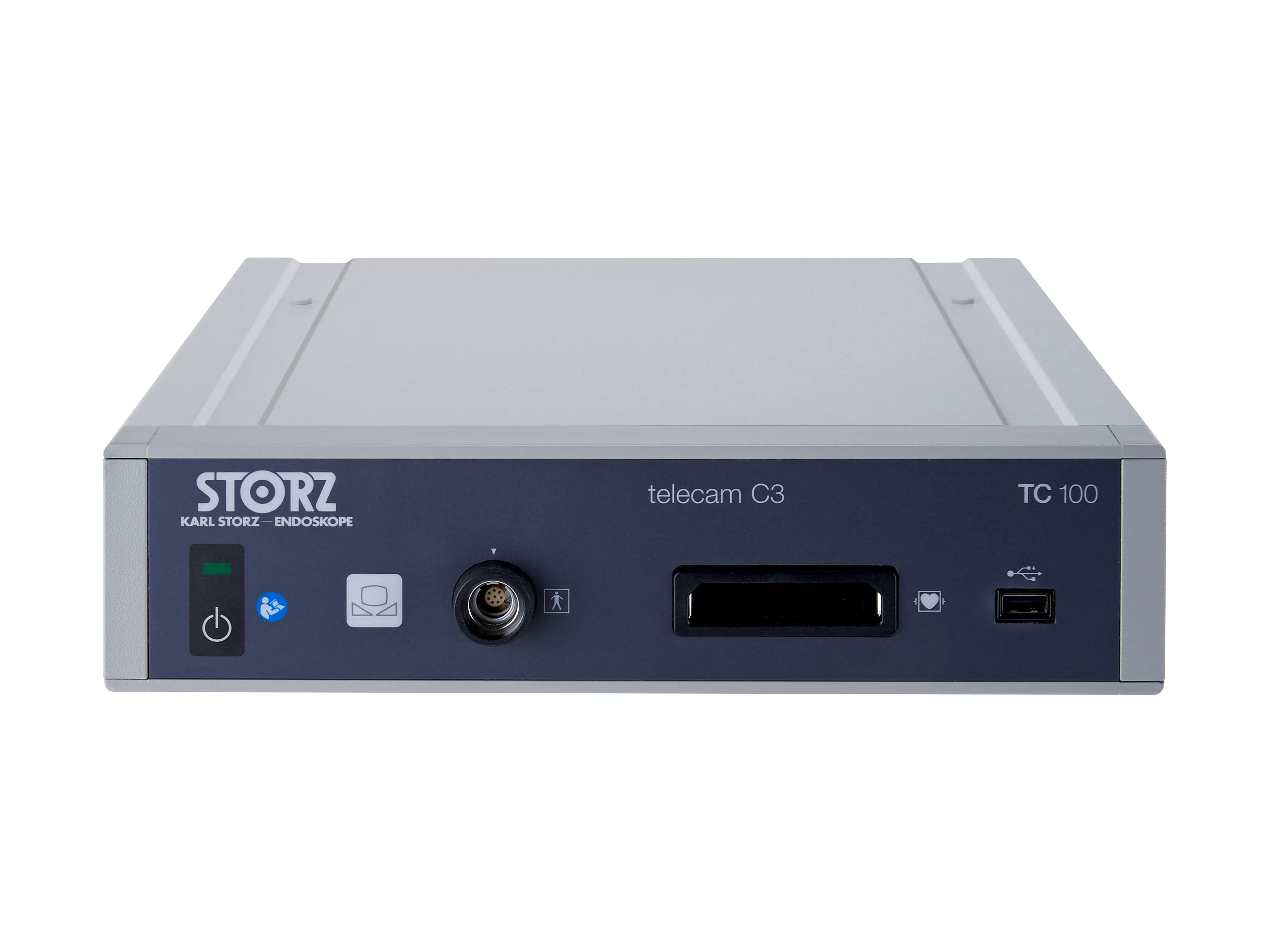

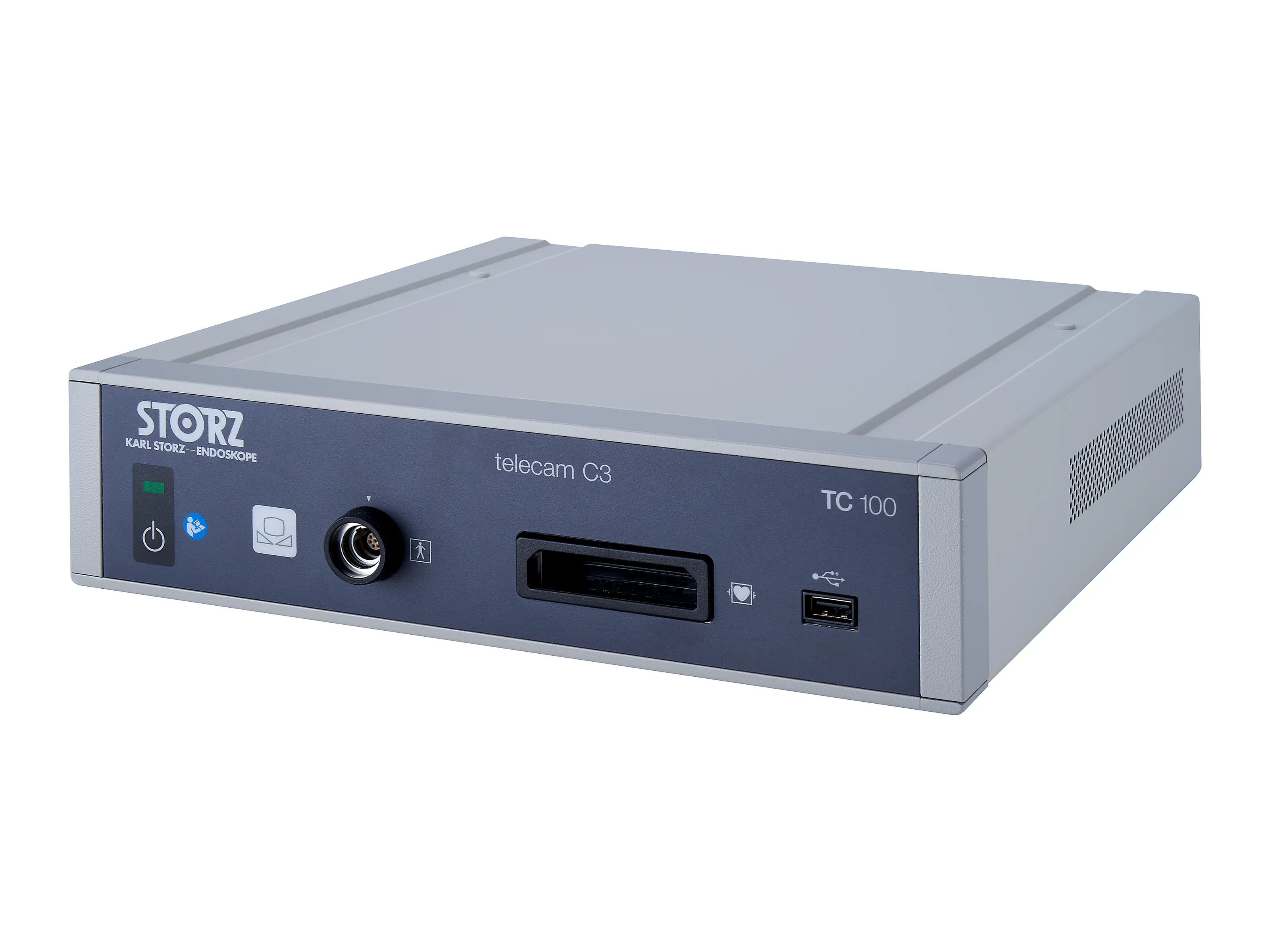

TELECAM C3 – Camera Control Unit for Rigid, Flexible and Single-use Endoscopy


  • FULL HD camera control unit
  • Large number of compatible rigid, flexible and single-use endoscopes from KARL STORZ
  • Patient data entry possible
  • Data storage on internal memory (up to 50 GB) or external storage medium
  • Improved* menu navigation thanks to newly developed navigation interface
* in comparison to previous model
  • Technical details
  • Documents & Films
  • Product group / field of application
BrandTELECAM C3
Resolution1920 x 1080 px
Power supply100 – 240 VAC
Power consumption70 VA
Frame rate50 / 60 Hz
Fluorescence imaging (NIR/ICG)No
Fluorescence imaging (Blue Light Imaging, BLI)No
Unit communication SCBNo
Digital Image Processing ModuleIntegrated
Integrated electronic fiberscope filterYes

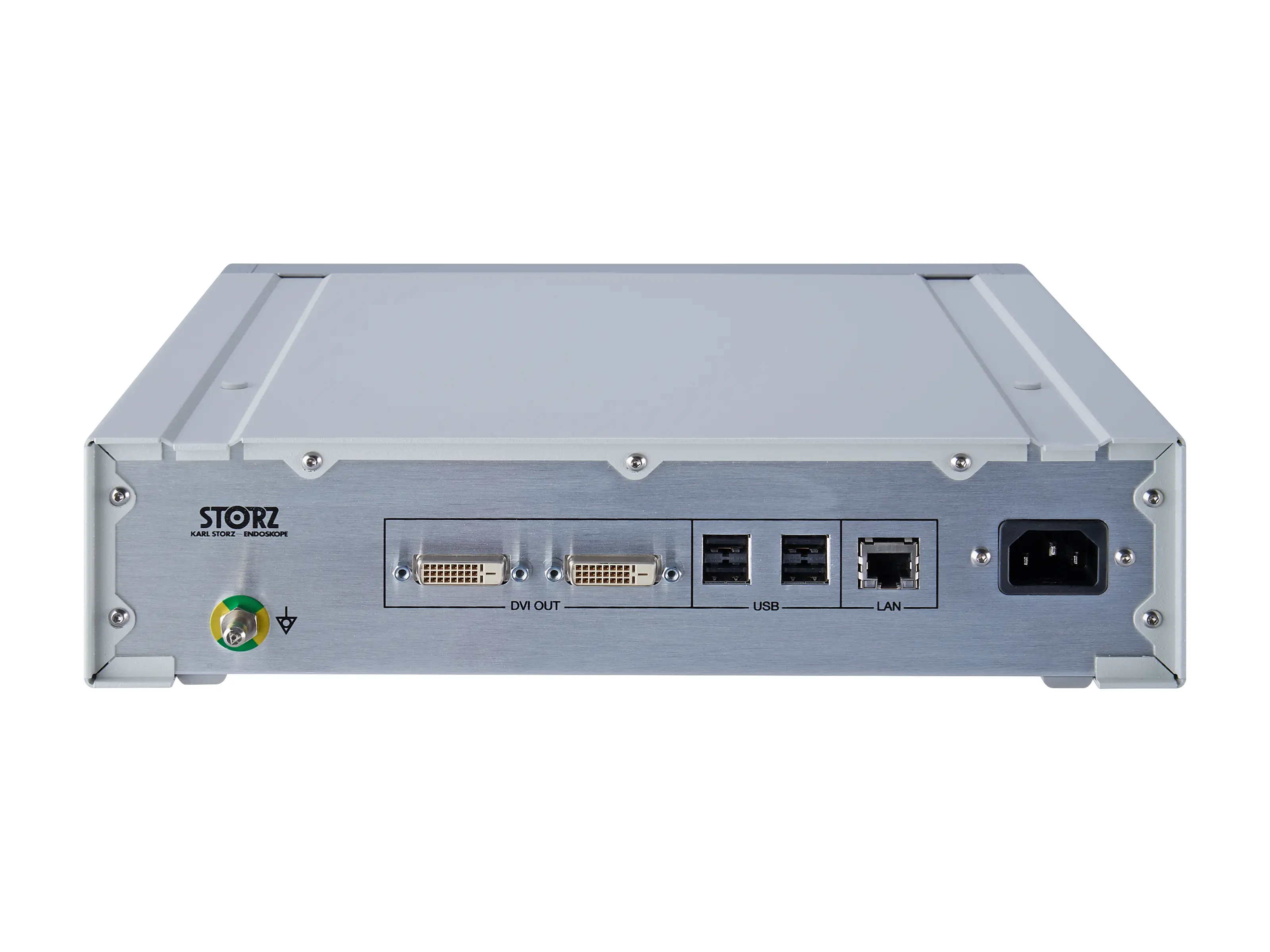

DVI-D output2
LAN interfaceYes
USB interface5
Camera connectors2, X-LINE and C-LINE
Storage optionUSB
Image formatsJPEG
Video formatMPEG 4
Internal memory size50 GB
Width305 mm
Height77 mm
Depth339 mm
Weight2.75 kg
Electrical protection classProtection class 1
Degree of safetyDepending on camera connection – CF or BF
Wipe disinfectionYes
Electrical protection classI
