Item no: TM220

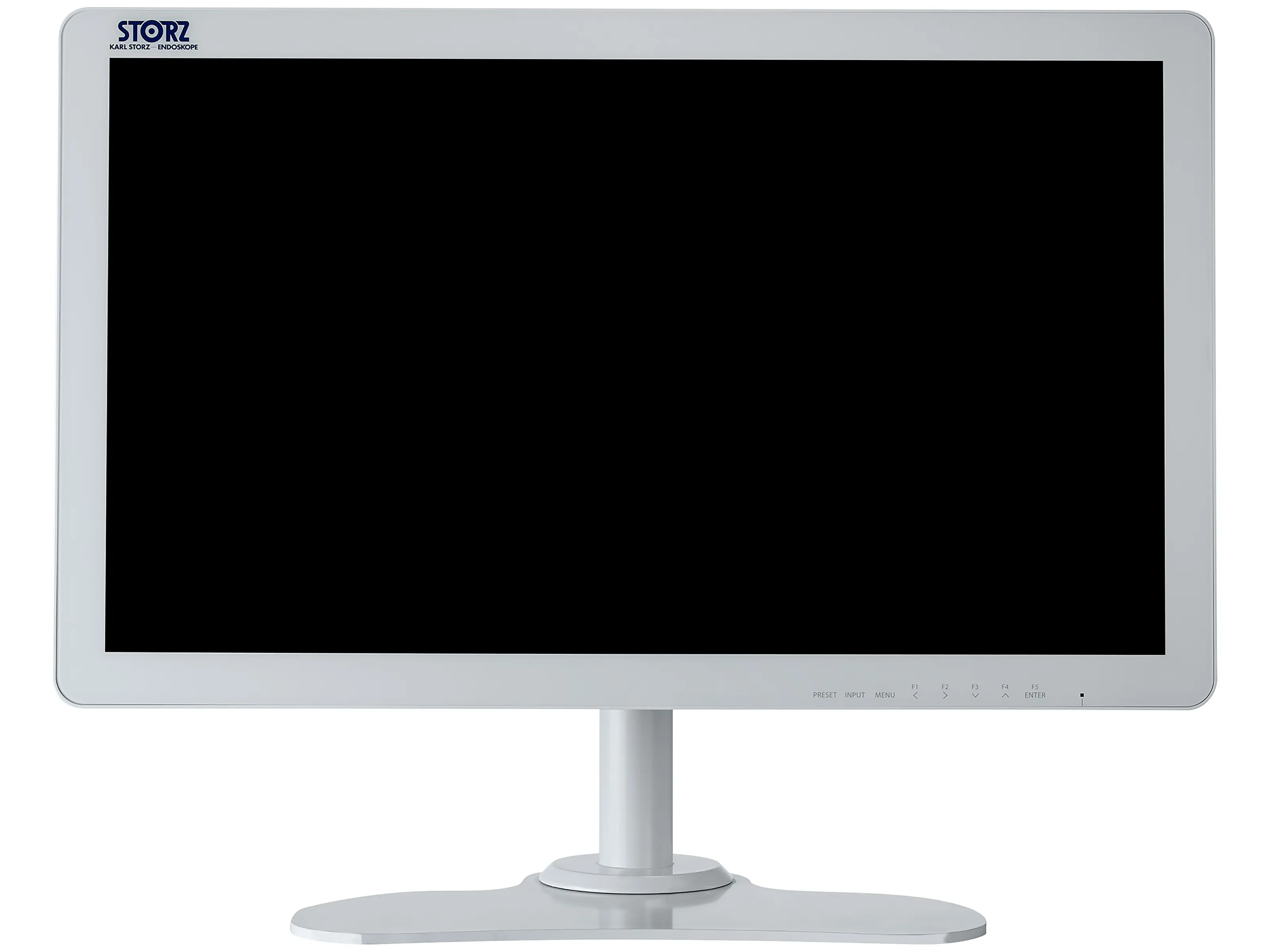

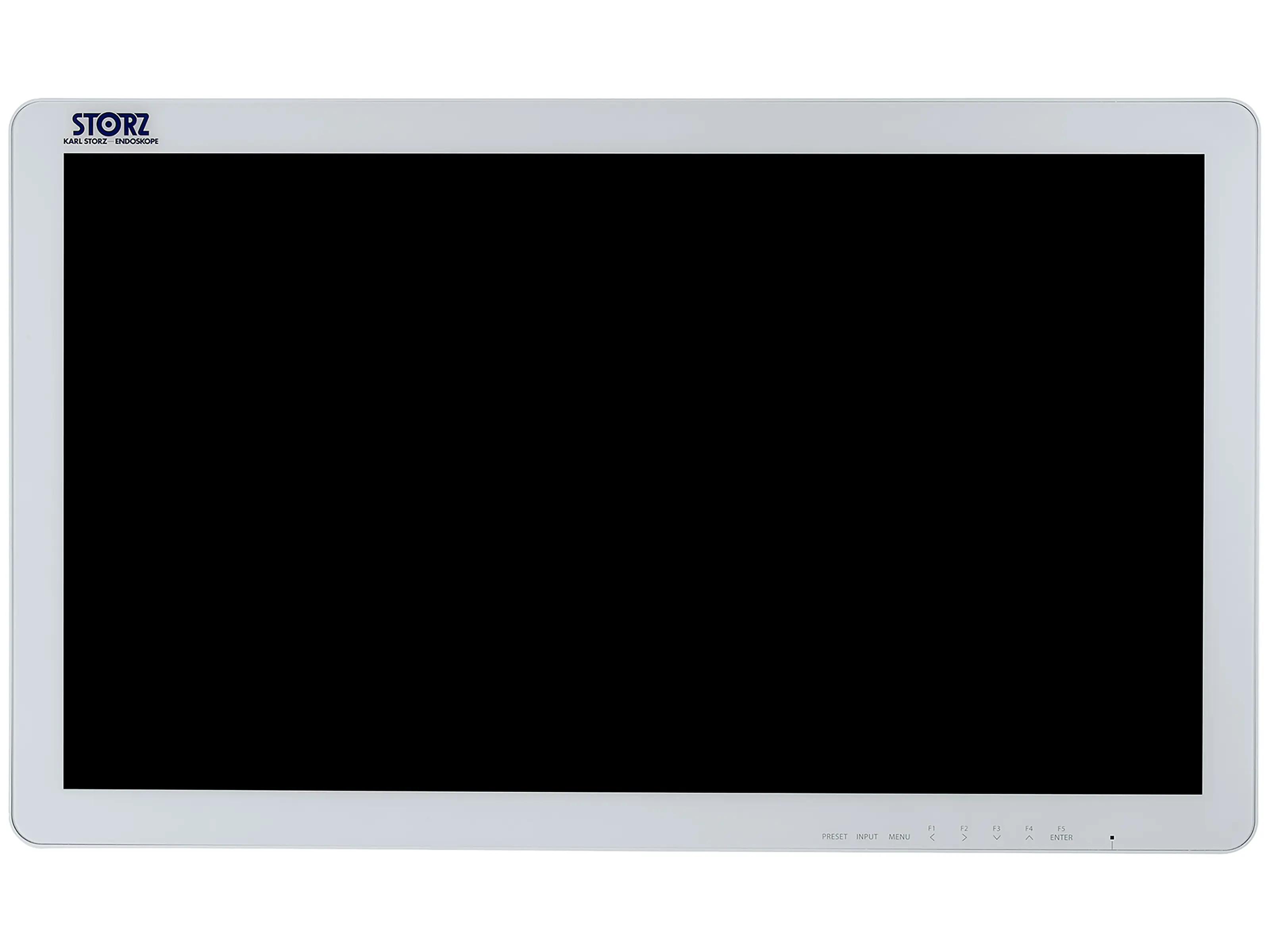

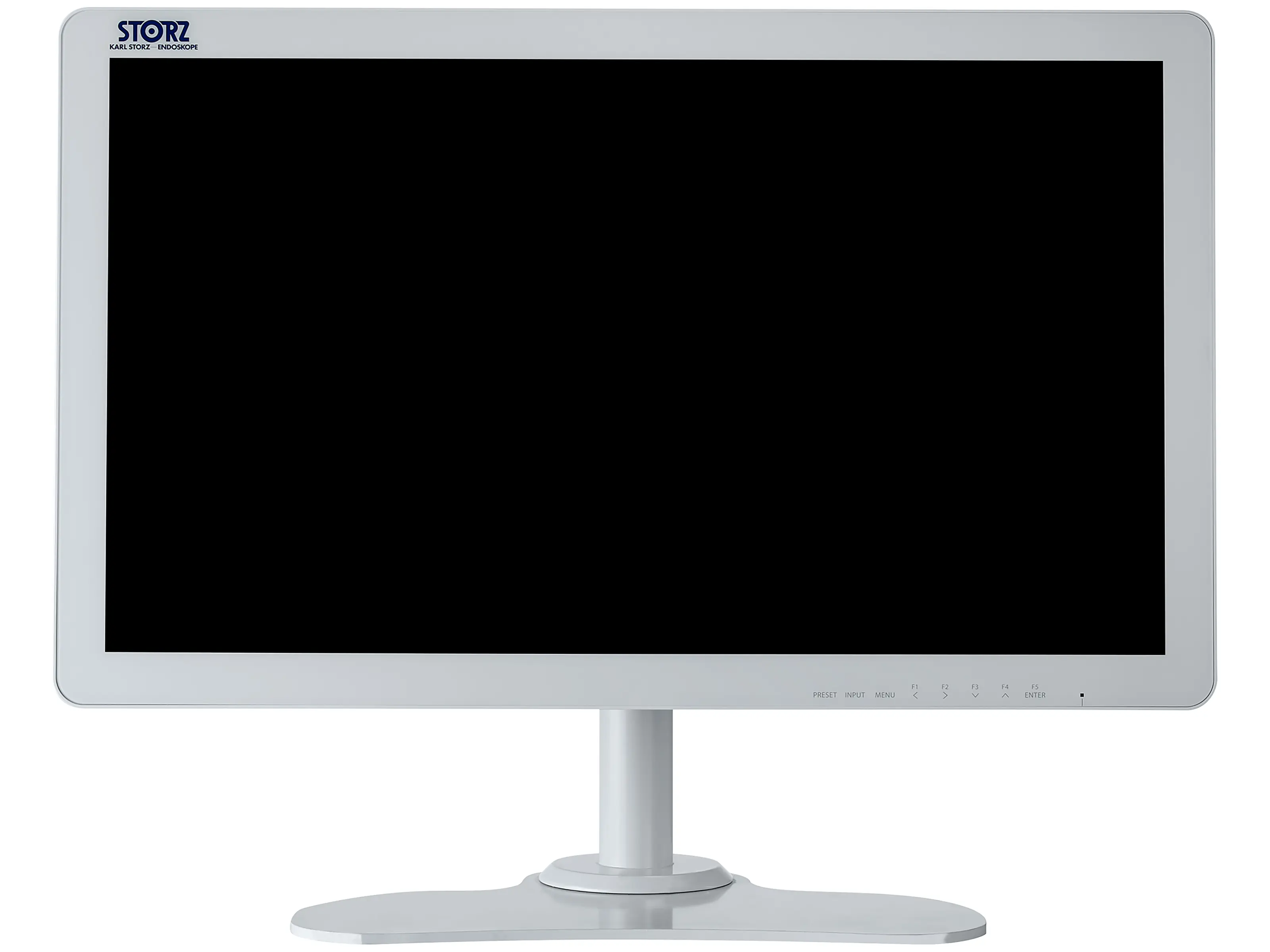

27″ FULL HD Monitor

Quantity:

Product details


  • Coordinated parameters for an optimal imaging chain in conjunction with the IMAGE1 S™ camera system
  • Good durability thanks to special tempered safety glass
  • Optimal hygiene properties due to enclosed glass surface that allows quick and easy wipe disinfection
  • Technical details
  • Documents & Films
  • Product group / field of application
Screen diagonal27"
Monitor typeFULL HD monitor
Resolution1920 x 1080 px
Aspect ratio16:9
Contrast ratio1000:1
Brightness900 cd/m²
Viewing angle horizontal max.178°
DC output5V / 1A
RS-232C1
USB typeUSB B
Power supply100 – 240 VAC
Line frequency50/60 Hz
Width660 mm
Height400 mm
Depth87 mm
Weight8.5 kg
3G-SDI input1
3G-SDI output1
VGA input1
S-Video input1
Component input1
DVI-D input2
DVI-D output1
Component output1
GPI output1
S-Video output1
VESA mount100 x 100 mm
Power supply typeExternal
Power supply voltage24 V
Power consumption72 Watt
Zoom functionYes
Picture-in-PictureYes
Wipe disinfectionYes
IP protection class frontIP32
IP protection class rearIP32
