Item no: TH121

IMAGE1 S 4U RUBINA, OPAL1 NIR/ICG

Quantity:

Product details

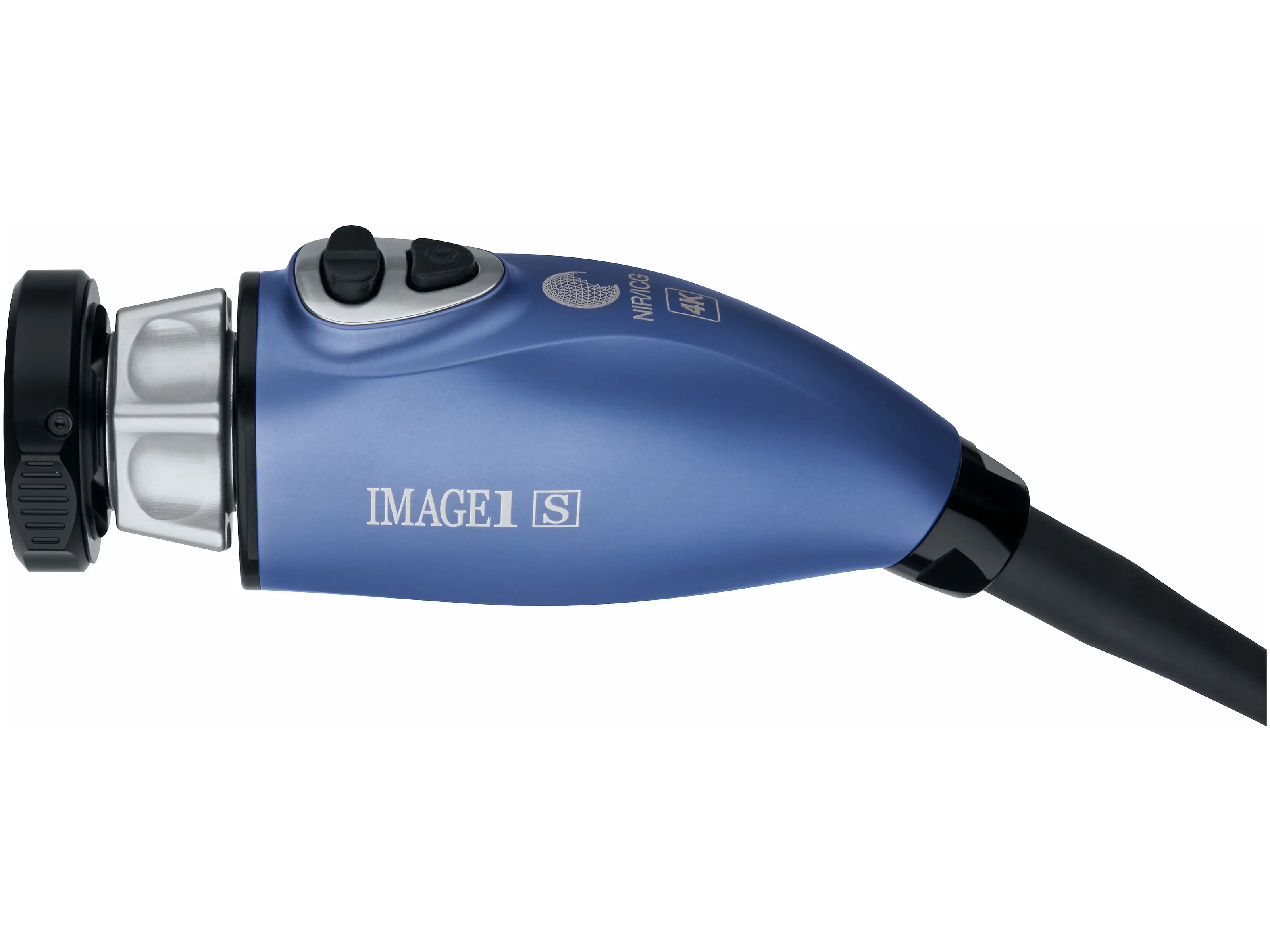

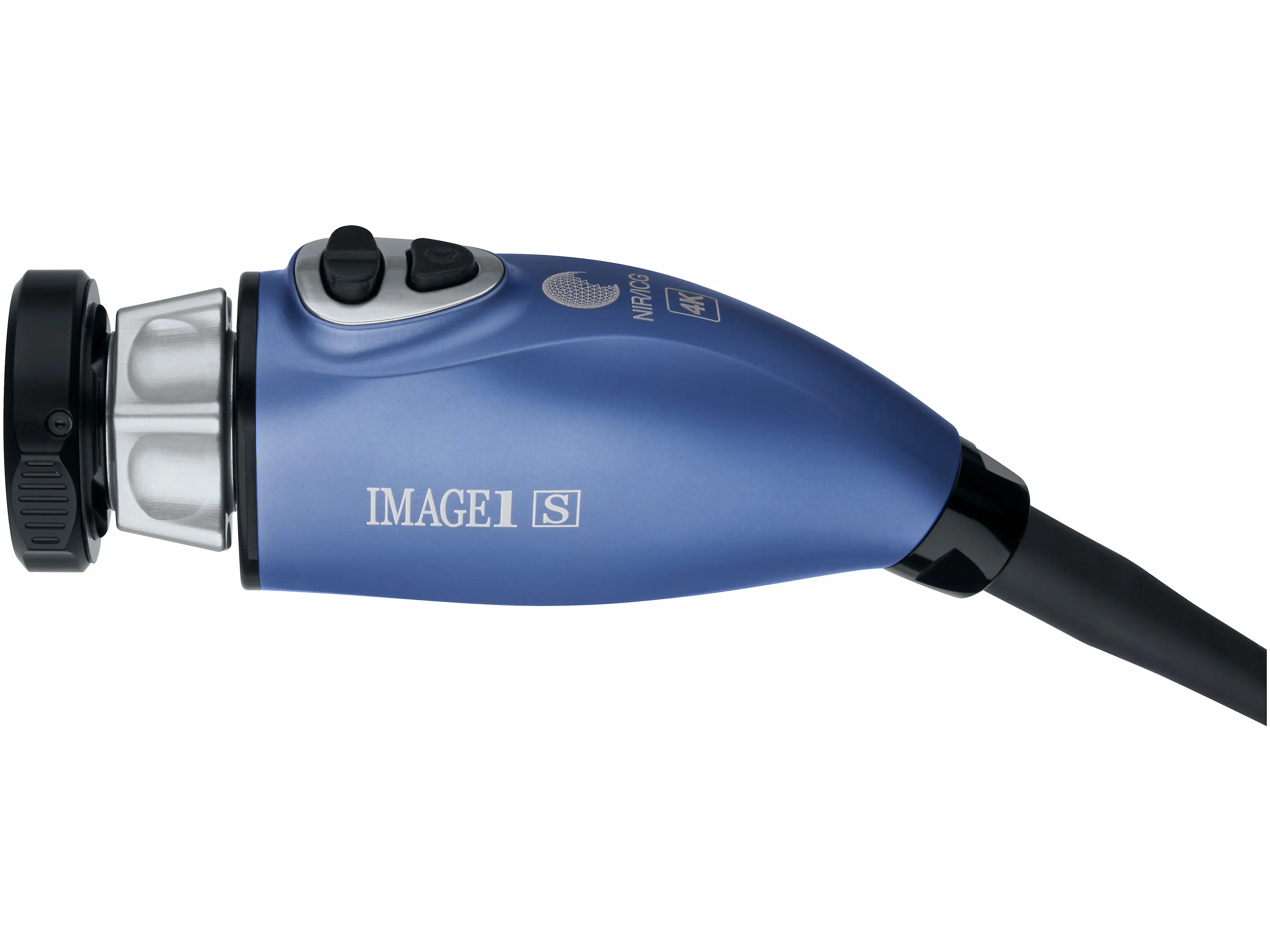

The New 4K-NIR/ICG Camera Head


  • Native 4K image resolution
  • OPAL1® NIR/ICG visualization modes: Overlay, Monochromatic and Intensity Map
  • S-Technologies available
  • Enhanced NIR/ICG telescopes in comparison with previous models and new variants
  • Compatible with IMAGE1 S™ 4U-LINK
  • Technical details
  • Documents & Films
  • Product group / field of application
Image sensor resolution4K
Resolution3840 x 2160 px
Connection4U-Line
Fluorescence imaging (NIR/ICG)Yes, in conjunction with POWER LED Rubina®
Fluorescence imaging (Blue Light Imaging, BLI)No
S-TechnologiesCLARA, CHROMA, SPECTRA A + B
Frame rate50 / 60 Hz
Image sensor typeCMOS
Number of image sensors2
Aspect ratio16:9
LensFocus adjustable via focus ring
Zoom functionYes, digital
Focal length19 mm
Width41 mm
Height55 mm
Length150 mm
Weight260 g
Cable length300 cm
Cable detachableNo
Cable routingStraight
Adaptive zoomYes, in combination with TC304 and TC201
Camera head buttons3 Buttons, 2 freely programmable
Grip mechanismStandard eyepiece adaptor
SoakableYes
AutoclavableNo
H2O2 (hydrogen peroxide)Yes
Wipe disinfectionYes
Sterile conceptSingle-use covers
BrandIMAGE1 S Rubina®
Scanning methodProgressive scan
