Item no: TL410
POWER LED SAPHIRA, OPAL1 PDD
Quantity:
Scope of delivery
Product details
Flexibility in Visualization

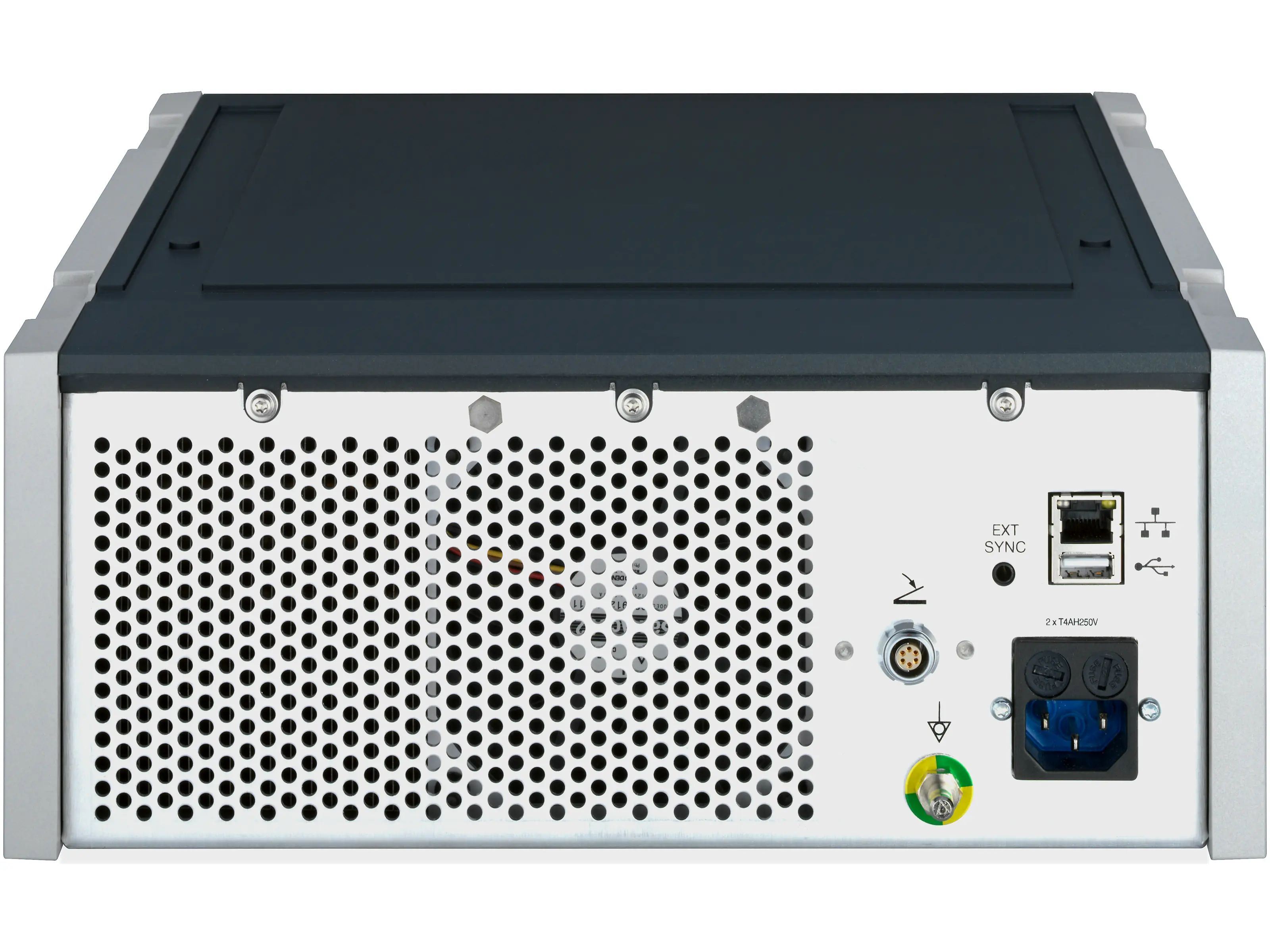

The POWER LED Saphira™ is a light source based on LED technology. It can be used for both white light and fluorescence applications in blue light for visualizing tumor cells.
The POWER LED Saphira™ offers a number of advantages and new possibilities.
- Laser-free LED light source for white light and blue light excitation
- LED-based light source with two LEDs:
- 1x White light LED: Enhanced white light intensity*
- 1x Blue light LED: Higher emission of light intensity* - Both applications possible with an autoclavable light cable
- Min. 30,000 hours of lamp service life
- Significantly quieter than D-LIGHT C
- New user interface with touch screen
- Technical details
- Documents & Films
- Product group / field of application
| Fluorescence imaging (NIR/ICG) | No |
| Fluorescence imaging (Blue Light Imaging, BLI) | Yes |
| Control via touch screen | Yes |
| Illumination technology | LED |
| Average lamp service life | 30000 h |
| Integrated pump for air insufflation | No |
| Color temperature approx. | 5700 K |
| Unit communication KS HIVE® | Yes |
| Unit communication SCB | No |
| Light intensity adjustment | Automatic via HIVE and manual |
| Weight | 7.4 kg |
| Width | 305 mm |
| Height | 120 mm |
| Depth | 370 mm |
| Power supply | 100 - 125 / 220 - 240 VAC |
| IP protection class | IPX0 |
| Electrical protection class | Protection class 1 |
| KARL STORZ light outlet | Yes |
| Power consumption | 180 VA |
| Line frequency | 50/60 Hz |
| Degree of safety | CF |
| Degree of safety with KARL STORZ light cables | CF-Defib |
| USB port type | Yes |
| Wipe disinfection | Yes |
| Brand | Saphira™ |
| Electrical protection class | I |
