Item no: 26606ACA
TIPCAM1 RUBINA 0°, OPAL1 NIR/ICG, 4K 3D
Quantity:Product details

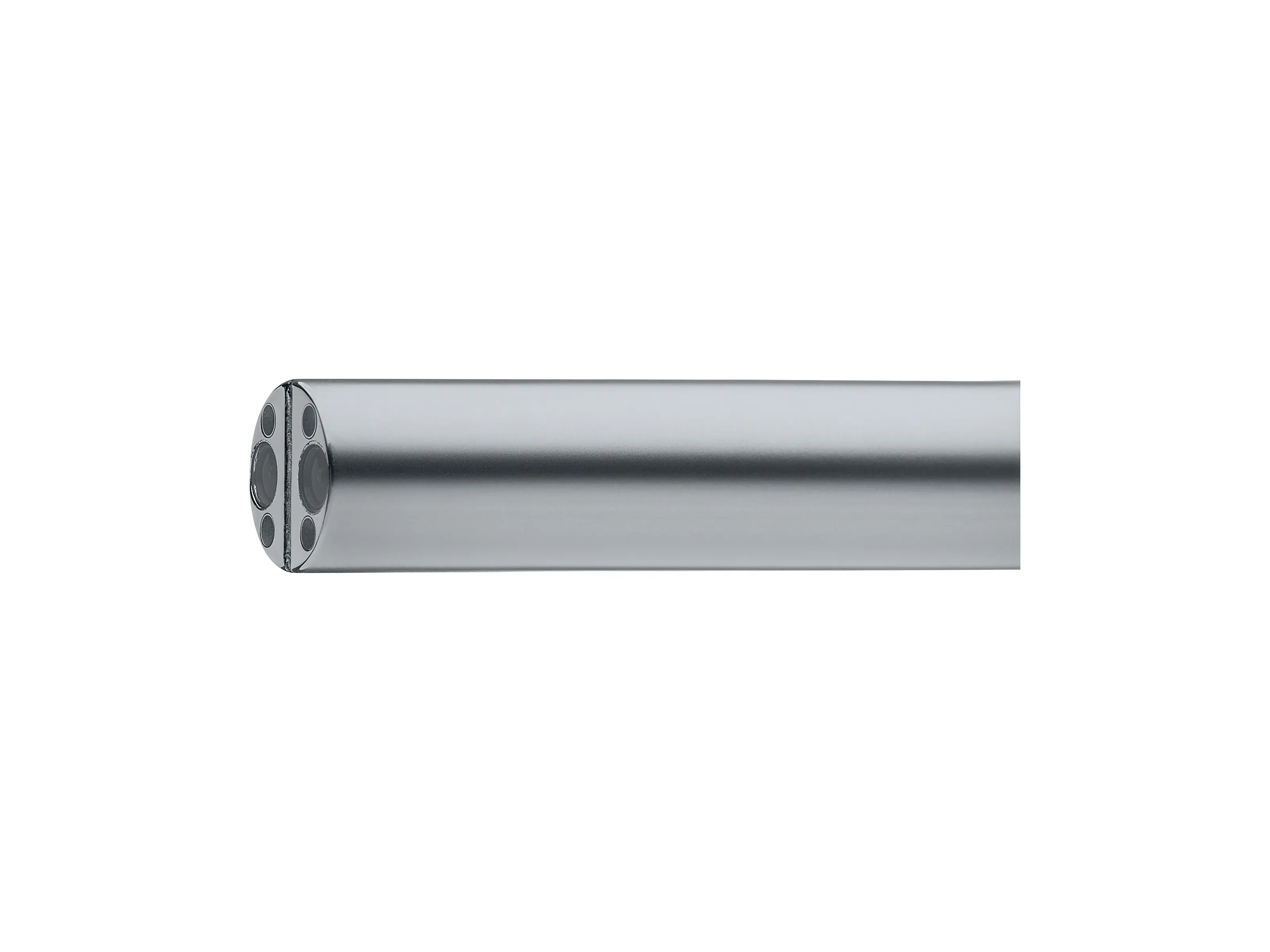

TIPCAM®1 Rubina® – The New 4K-3D NIR/ICG Videoendoscope
- Automatic horizon control for better orientation and handling
- Available with 0° and 30° directions of view
- Easy toggle from 3D to 2D
- OPAL1® NIR/ICG visualization modes: Overlay, Monochromatic and Intensity Map
- 4K image chain
- Technical details
- Documents & Films
- Product group / field of application
| Image sensor resolution | 4K |
| Direction of view | 0° |
| Outer diameter | 10.3 mm |
| Working length | 317 mm |
| Fluorescence imaging (NIR/ICG) | Yes, in conjunction with Power LED Rubina® |
| Connection | 4U-Line |
| Weight | 420 g |
| Cable length | 300 cm |
| Cable routing | Straight |
| Frame rate | 50 / 60 Hz |
| Image sensor type | CMOS |
| Number of image sensors | 2 |
| Zoom function | Yes, digital |
| Camera head buttons | 3 Buttons, 2 freely programmable |
| Autoclavable | Yes |
| H2O2 (hydrogen peroxide) | Yes |
| S-Technologies | CLARA, CHROMA, SPECTRA A + B |
| Degree of protection in conjunction with the IMAGE1 S™ camera control unit | CF-Defib |
| Scanning method | Progressive scan |
| Brand | TIPCAM®1 |
