Item no: TM220

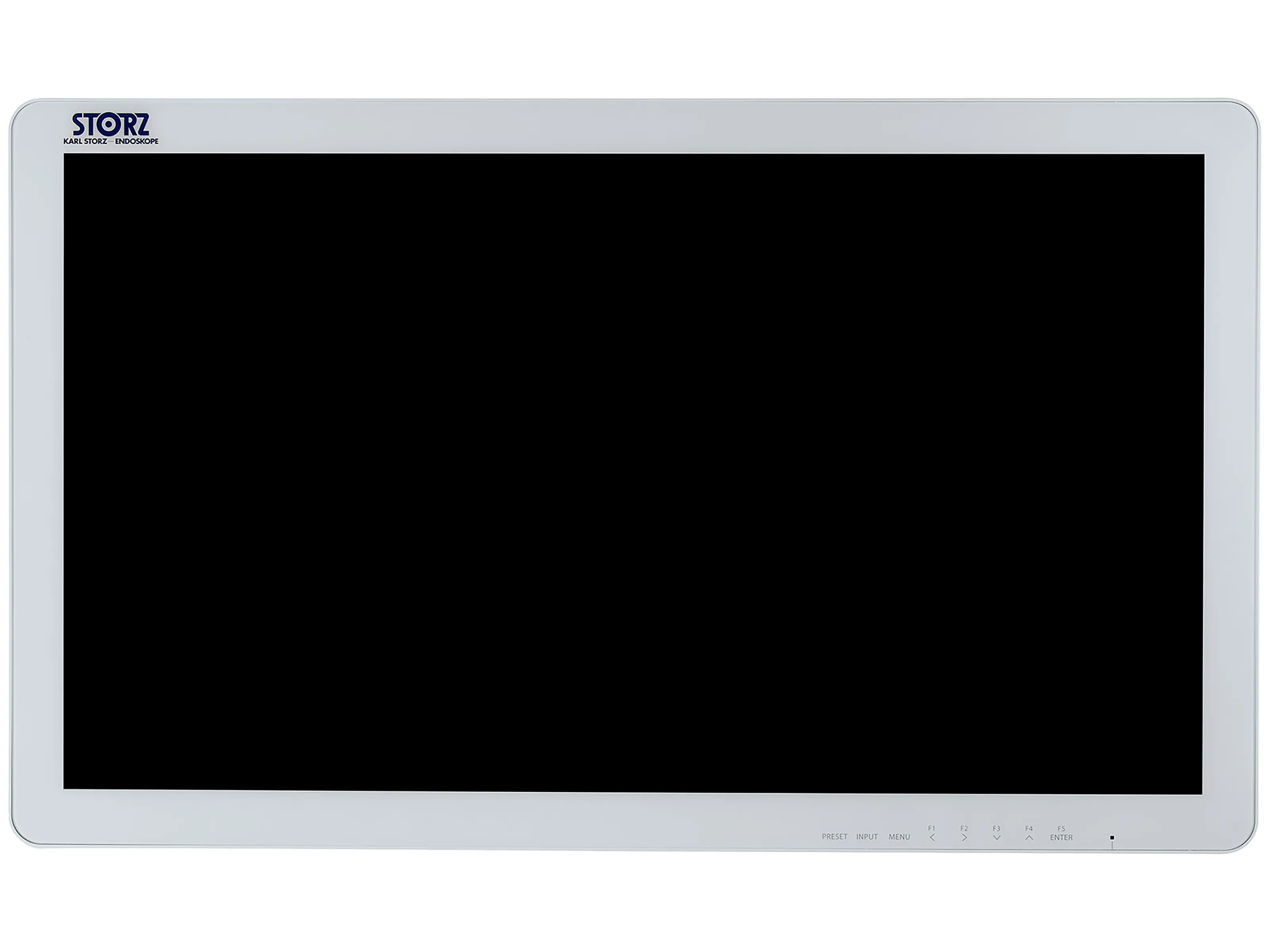

27″ FULL HD Monitor
Quantity:
Scope of delivery
Product details
- Coordinated parameters for an optimal imaging chain in conjunction with the IMAGE1 S™ camera system
- Good durability thanks to special tempered safety glass
- Optimal hygiene properties due to enclosed glass surface that allows quick and easy wipe disinfection
- Technical details
- Documents & Films
- Product group / field of application
| Screen diagonal | 27" |
| Monitor type | FULL HD monitor |
| Resolution | 1920 x 1080 px |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000:1 |
| Brightness | 900 cd/m² |
| Viewing angle (2D) | 178° |
| DC output | 5V / 1A |
| RS-232C | 1 |
| USB type | USB B |
| Power supply | 100 – 240 VAC |
| Line frequency | 50/60 Hz |
| Width | 660 mm |
| Height | 400 mm |
| Depth | 87 mm |
| Weight | 8.5 kg |
| 3G-SDI input | 1 |
| 3G-SDI output | 1 |
| VGA input | 1 |
| S-Video input | 1 |
| Component input | 1 |
| DVI-D input | 2 |
| DVI-D output | 1 |
| Component output | 1 |
| GPI output | 1 |
| S-Video output | 1 |
| VESA mount | 100 x 100 mm |
| Power supply type | External |
| Power supply voltage | 24 V |
| Power consumption | 72 Watt |
| Zoom function | Yes |
| Picture-in-Picture | Yes |
| Wipe disinfection | Yes |
| IP protection class front | IP32 |
| IP protection class rear | IP32 |
