Item no: TL410
POWER LED SAPHIRA, OPAL1 PDD
Quantity:
Scope of delivery
Product details
Flexibility in Visualization

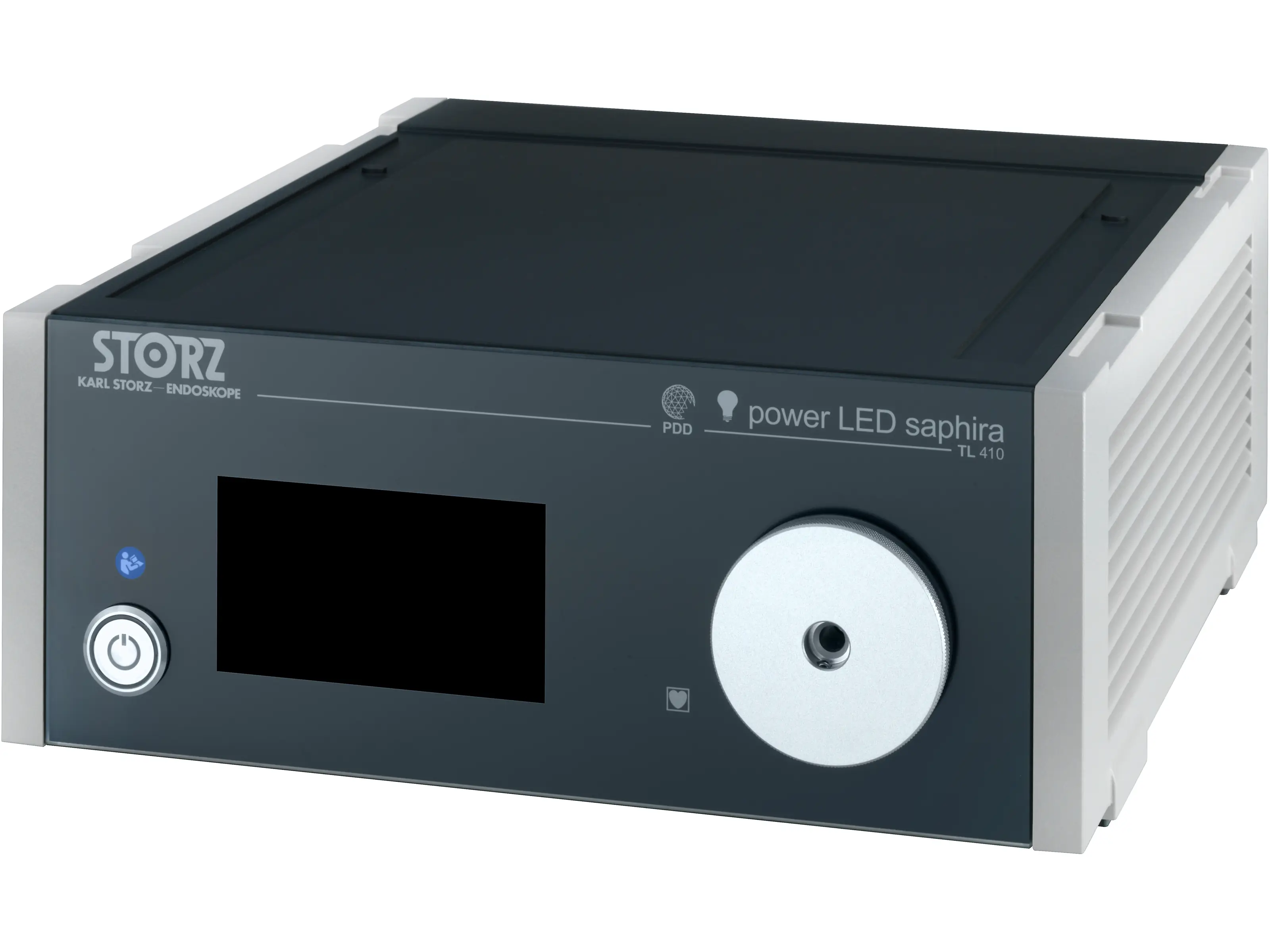

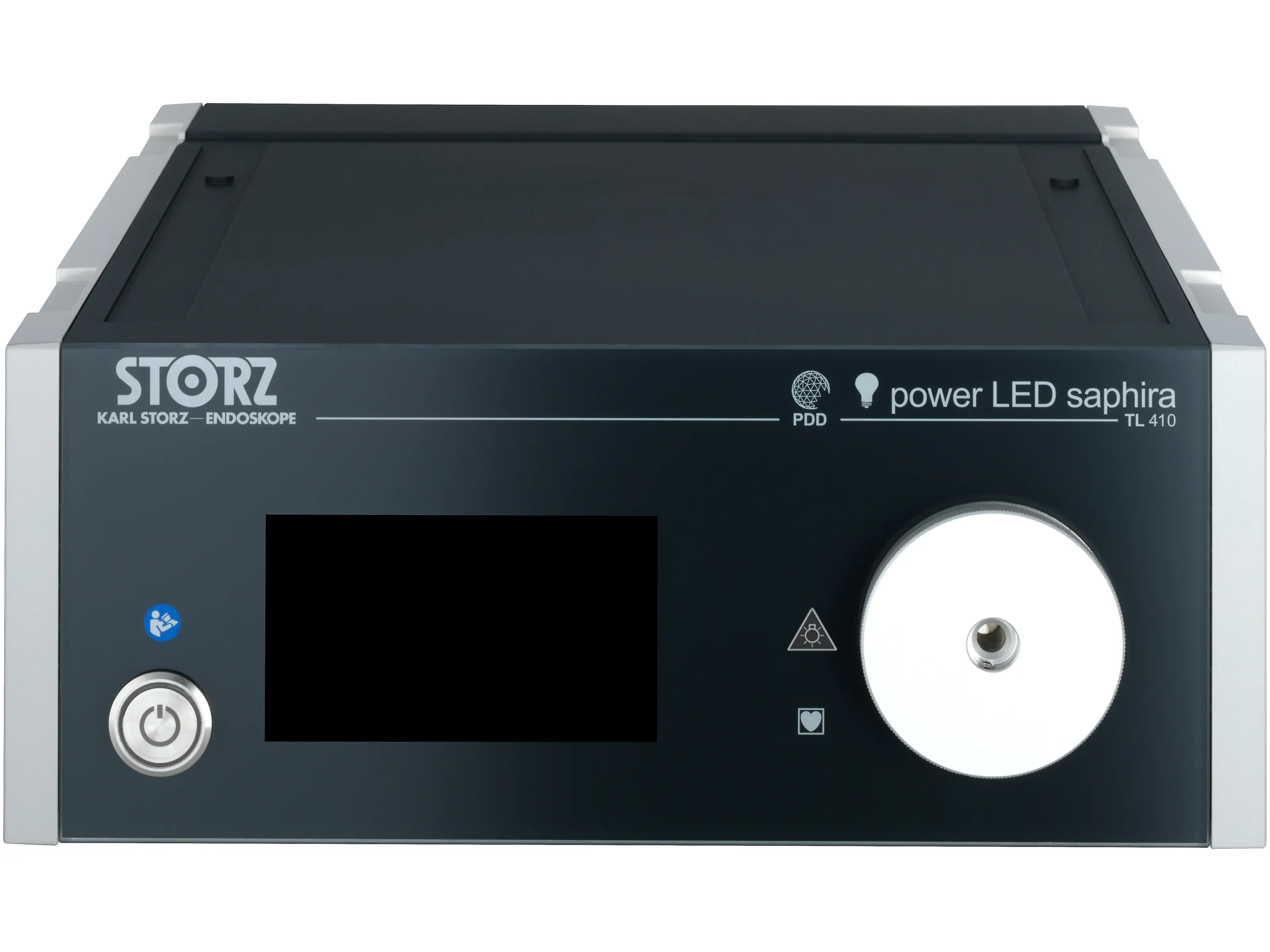

The POWER LED Saphira™ is a light source based on LED technology. It can be used for both white light and fluorescence applications in blue light for visualizing tumor cells.
The POWER LED Saphira™ offers a number of advantages and new possibilities.
- Laser-free LED light source for white light and blue light excitation
- LED-based light source with two LEDs:
- 1x White light LED: Enhanced white light intensity*
- 1x Blue light LED: Higher emission of light intensity* - Both applications possible with an autoclavable light cable
- Min. 30,000 hours of lamp service life
- Significantly quieter than D-LIGHT C
- New user interface with touch screen
- Technical details
- Documents & Films
- Product group / field of application
Fluorescence imaging (NIR/ICG) | No |
Fluorescence imaging (Blue Light Imaging, BLI) | Yes |
Control via touch screen | Yes |
Illumination technology | LED |
Average lamp service life | 30000 h |
Integrated pump for air insufflation | No |
Color temperature approx. | 5700 K |
Unit communication KS HIVE® | Yes |
Unit communication SCB | No |
Light intensity adjustment | Automatic via HIVE and manual |
Weight | 7.4 kg |
Width | 305 mm |
Height | 120 mm |
Depth | 370 mm |
Power supply | 100 - 125 / 220 - 240 VAC |
IP protection class | IPX0 |
Electrical protection class | Protection class 1 |
KARL STORZ light outlet | Yes |
Power consumption | 180 VA |
Line frequency | 50/60 Hz |
Degree of safety | CF |
Degree of safety with KARL STORZ light cables | CF-Defib |
USB port type | Yes |
Wipe disinfection | Yes |
Brand | Saphira™ |
Electrical protection class | 1 |
