TELECAM C3

error_outlineAvailable in the following languages: DE, EN, ES, FR, IT, PT, RU, SE.
Please note the required language in the offer list.
The keyboard in the corresponding language is then part of the scope of delivery.Quantity:

Scope of delivery

20040089	DVI Verbindungskabel, Länge 300 cm (1)
400A	Netzkabel, Länge 300 cm (1)
20040282	USB-Stick, 32 GB (1)

Product details

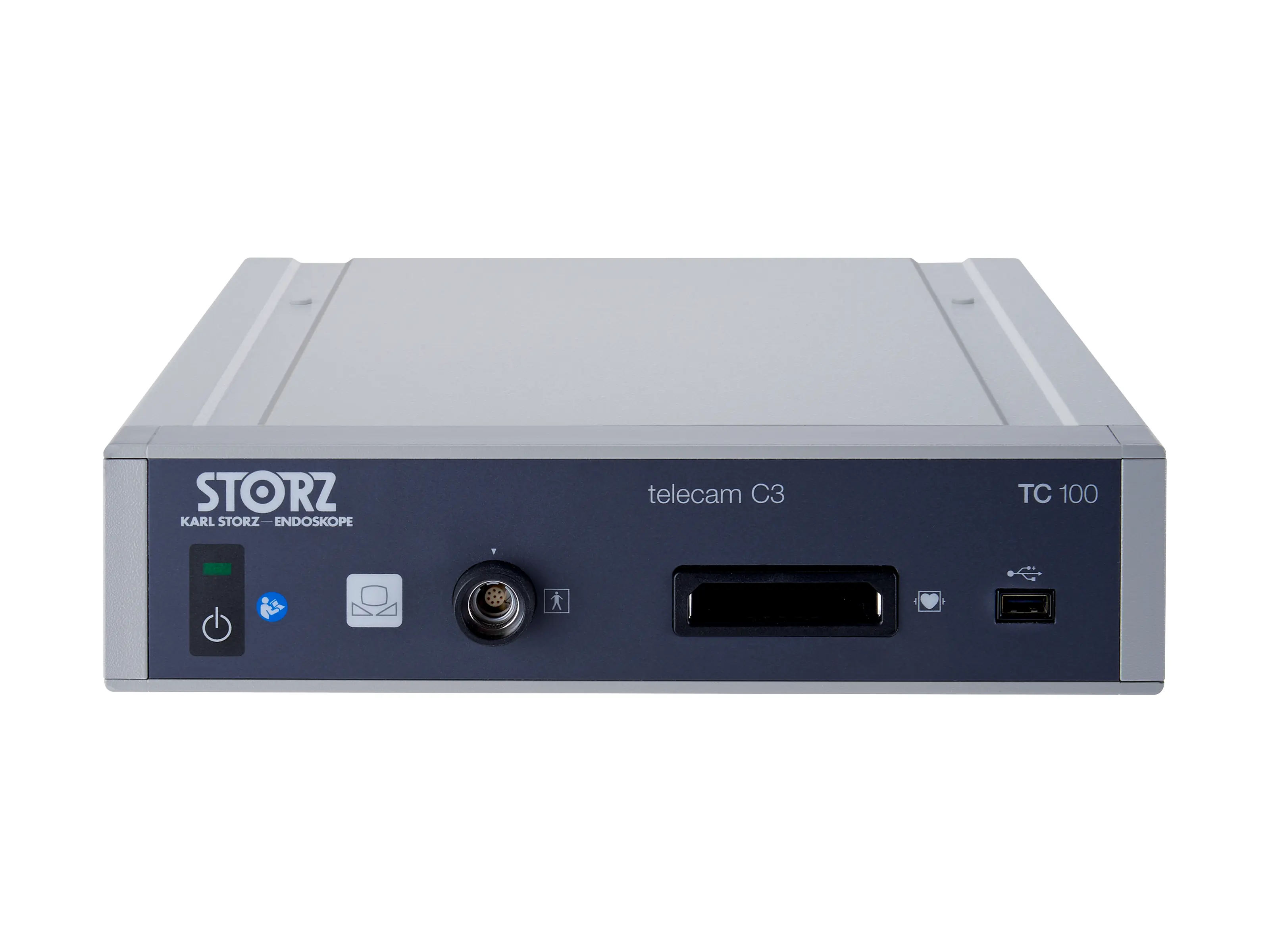

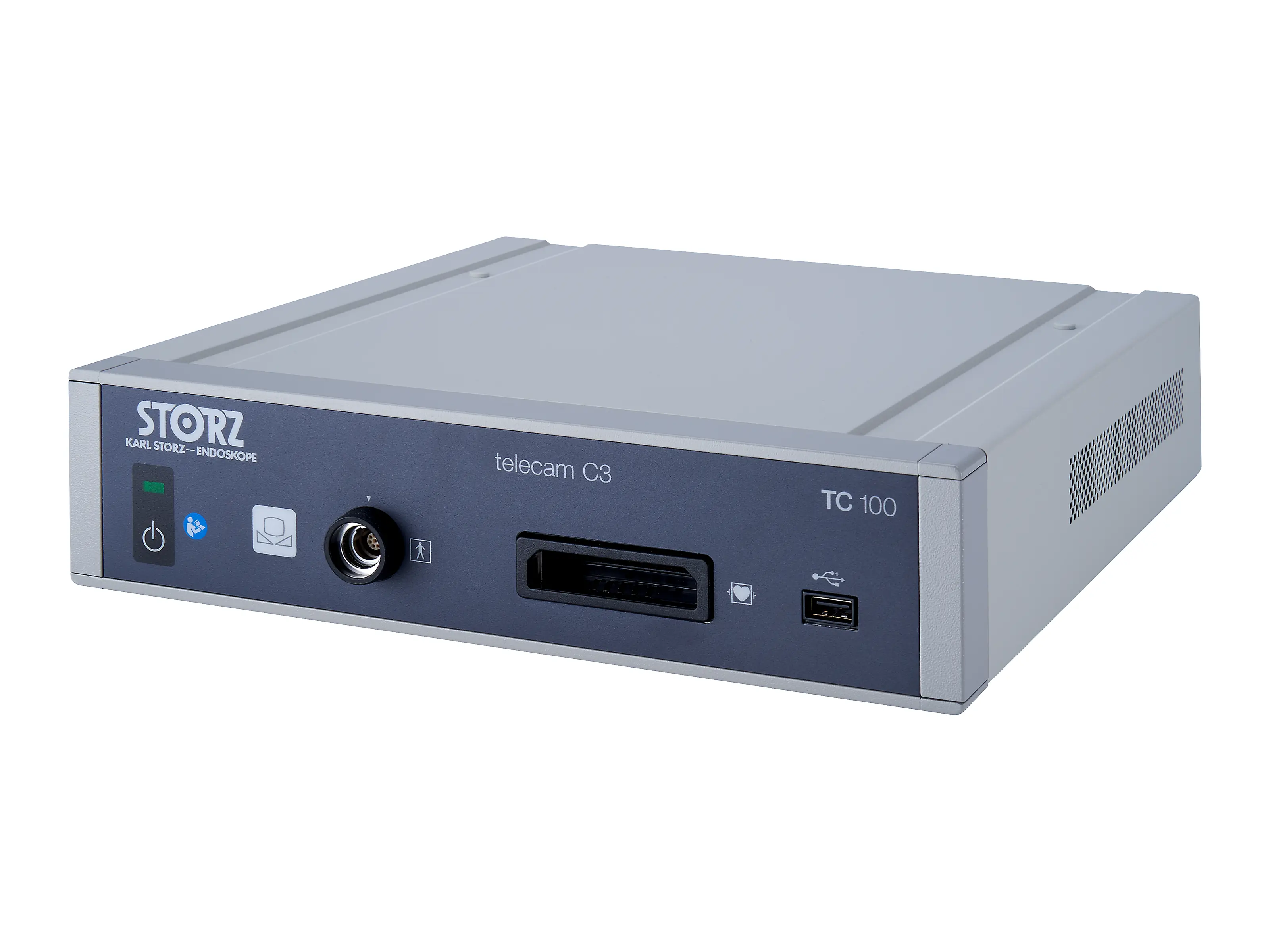

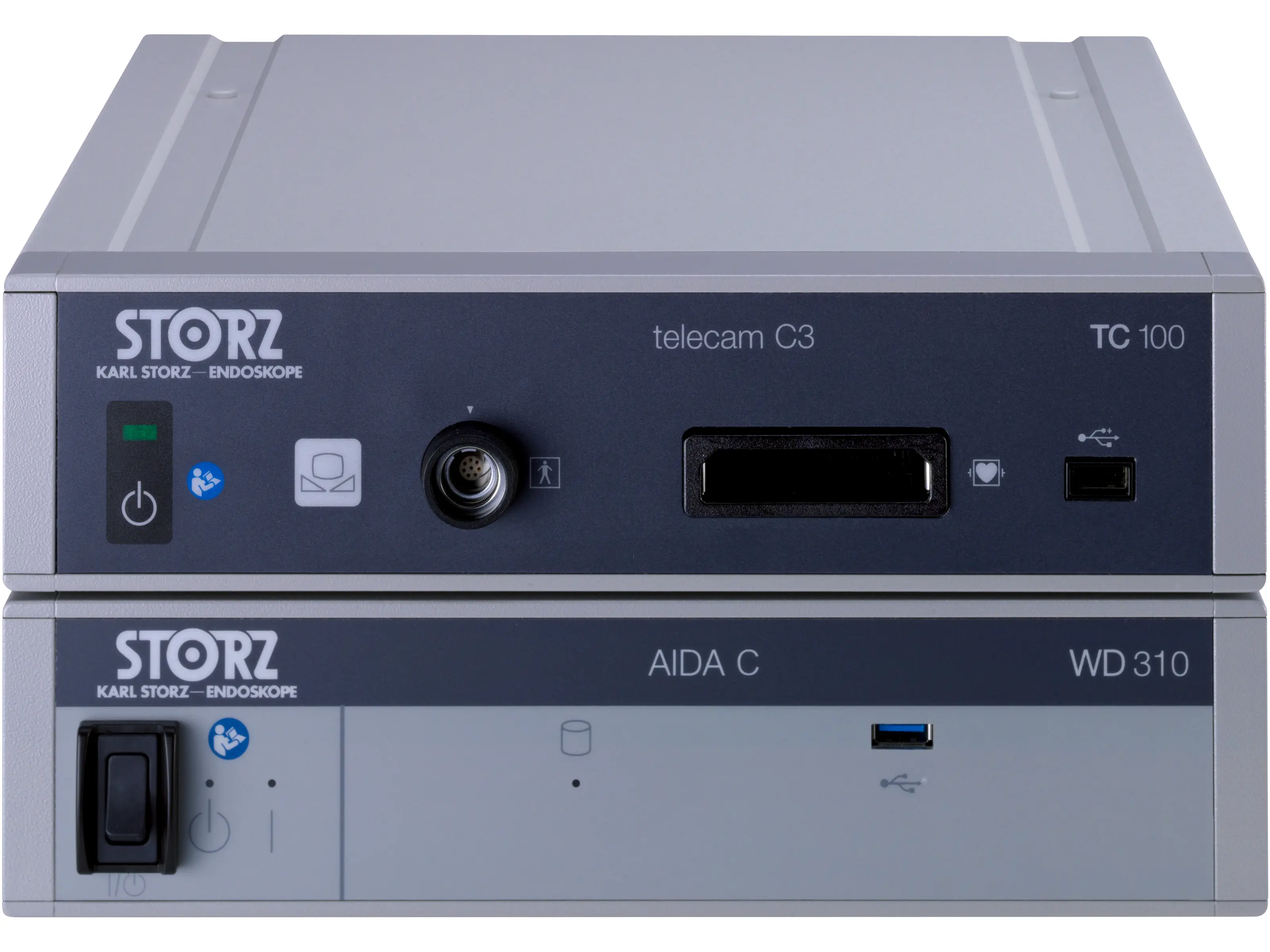

TELECAM C3 – Camera Control Unit for Rigid, Flexible and Single-use Endoscopy

FULL HD camera control unit
Large number of compatible rigid, flexible and single-use endoscopes from KARL STORZ
Patient data entry possible
Data storage on internal memory (up to 50 GB) or external storage medium
Improved* menu navigation thanks to newly developed navigation interface

_{* in comparison to previous model}

Technical details
Documents & Films
Product group / field of application

Brand	TELECAM C3
Resolution	1920 x 1080 px
Power supply	100 – 240 VAC
Power consumption	70 VA
Frame rate	50 / 60 Hz
Fluorescence imaging (NIR/ICG)	No
Fluorescence imaging (Blue Light Imaging, BLI)	No
Unit communication SCB	No
Digital Image Processing Module	Integrated
Integrated electronic fiberscope filter	Yes

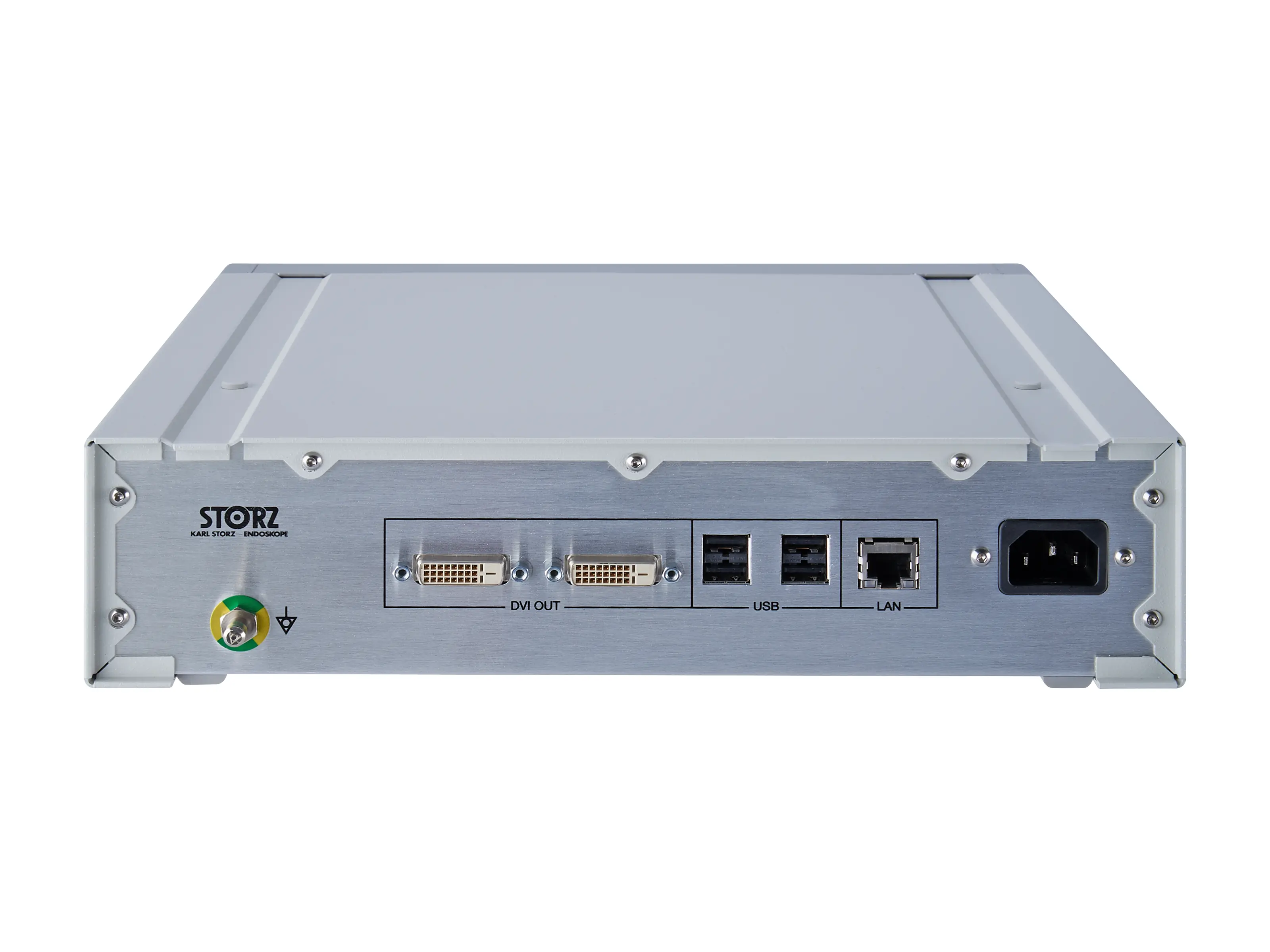

DVI-D output	2
LAN interface	Yes
USB interface	5
Camera connectors	2, X-LINE and C-LINE
Storage option	USB
Image formats	JPEG
Video format	MPEG 4
Internal memory size	50 GB
Width	305 mm
Height	77 mm
Depth	339 mm
Weight	2.75 kg
Electrical protection class	Protection class 1
Degree of safety	Depending on camera connection – CF or BF
Wipe disinfection	Yes
Electrical protection class	I

TELECAM C3

Product details

TELECAM C3 – Camera Control Unit for Rigid, Flexible and Single-use Endoscopy
