Item no: TL410

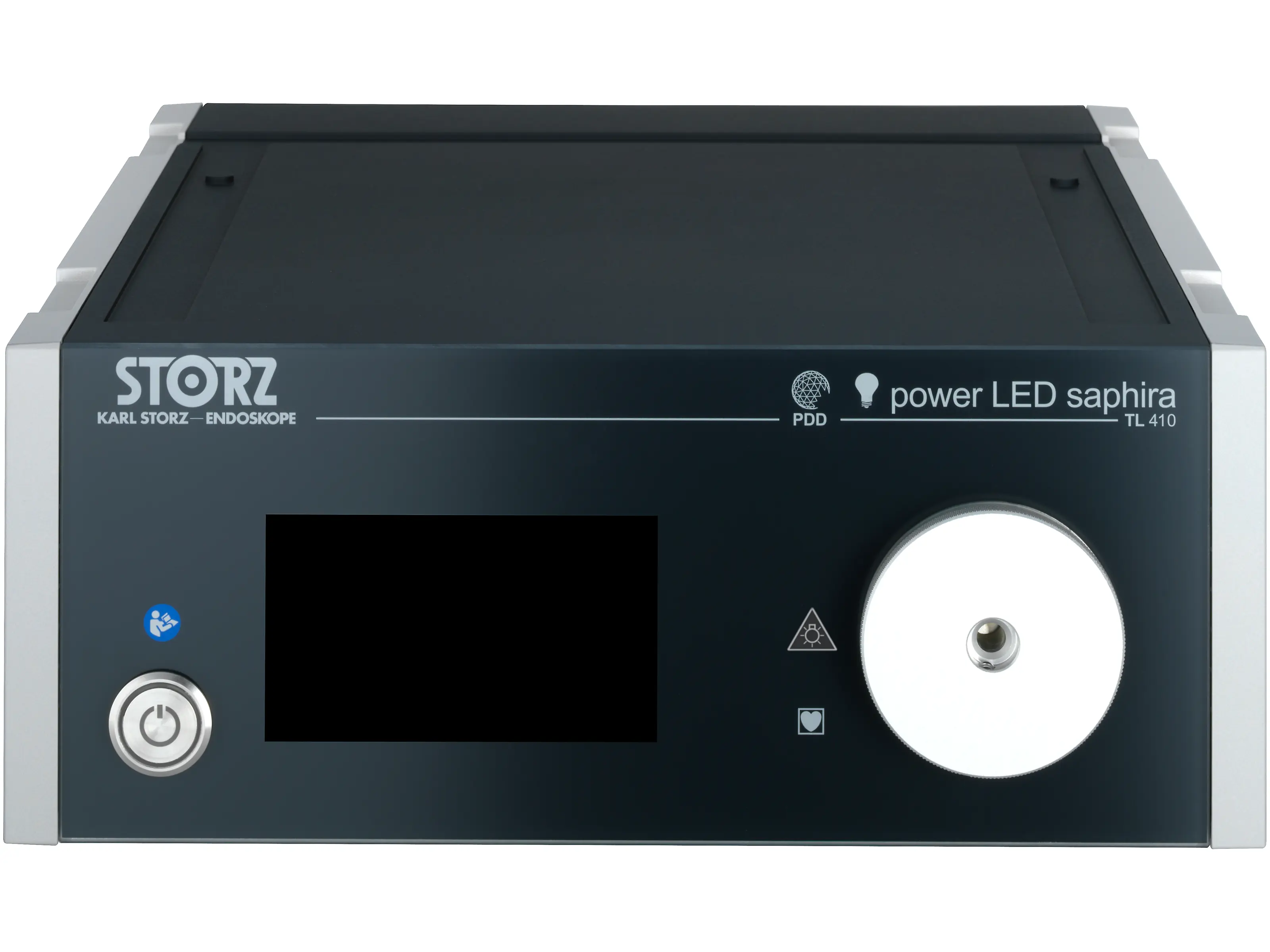

POWER LED SAPHIRA, OPAL1 PDD

Quantity:
Scope of delivery

Product details

Flexibility in Visualization

The POWER LED Saphira™ is a light source based on LED technology. It can be used for both white light and fluorescence applications in blue light for visualizing tumor cells.
The POWER LED Saphira™ offers a number of advantages and new possibilities.


  • Laser-free LED light source for white light and blue light excitation
  • LED-based light source with two LEDs:
    - 1x White light LED: Enhanced white light intensity*
    - 1x Blue light LED: Higher emission of light intensity*
  • Both applications possible with an autoclavable light cable
  • Min. 30,000 hours of lamp service life
  • Significantly quieter than D-LIGHT C
  • New user interface with touch screen
* in comparison to the previous model (D-LIGHT C)
  • Technical details
  • Documents & Films
  • Product group / field of application
Fluorescence imaging (NIR/ICG)No
Fluorescence imaging (Blue Light Imaging, BLI)Yes
Control via touch screenYes
Illumination technologyLED
Average lamp service life30000 h
Integrated pump for air insufflationNo
Color temperature approx.5700 K
Unit communication KS HIVE®Yes
Unit communication SCBNo
Light intensity adjustmentAutomatic via HIVE and manual
Weight7.4 kg
Width305 mm
Height120 mm
Depth370 mm
Power supply100 - 125 / 220 - 240 VAC
IP protection classIPX0
Electrical protection classProtection class 1
KARL STORZ light outletYes
Power consumption180 VA
Line frequency50/60 Hz
Degree of safetyCF
Degree of safety with KARL STORZ light cablesCF-Defib
USB port typeYes
Wipe disinfectionYes
BrandSaphira™
Electrical protection class1
