Item no: TP101

TELE PACK +

Quantity:
Scope of delivery

Product details

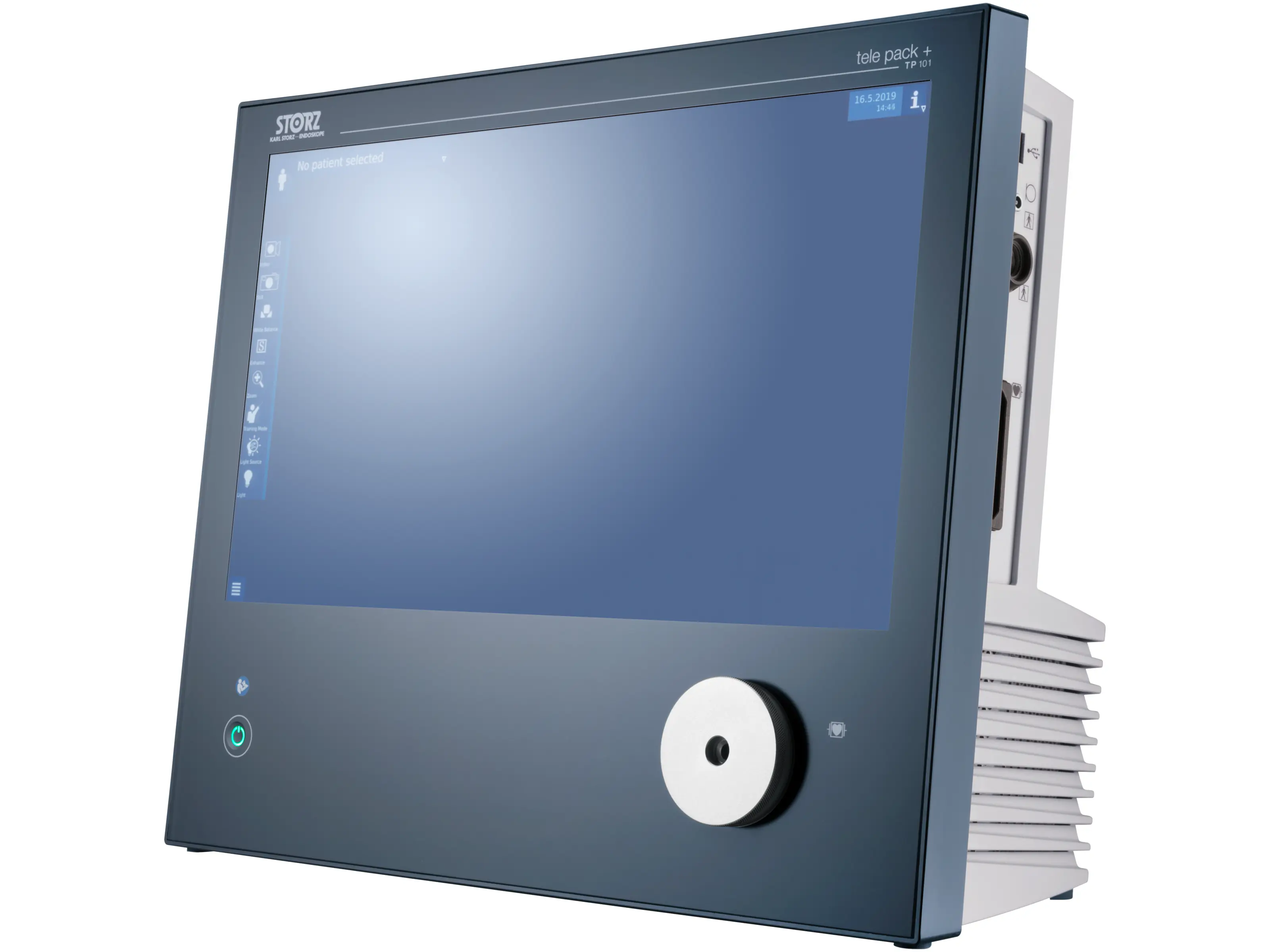

TELE PACK+ – Compact Endoscopy


  • Portable and compact all-in-one system
  • FULL HD touch monitor
  • Integrated LED light source
  • Archiving of patient data on internal memory, on USB memory devices or via the network integration function
  • Compatible with rigid, flexible and single-use endoscopes from KARL STORZ
  • Network functionality option: Export and import of patient data
  • Technical details
  • Documents & Films
  • Product group / field of application
BrandTELE PACK +
PurposeEndoscopic video unit with 2 camera inputs (X-Line and C-Line) for use with flexible videoendoscopes and one-chip camera heads (up to FULL HD)
Screen diagonal18.5"
Illumination technologyLED
Average lamp service life30000 h
Monitor typeFULL HD touch screen monitor
ControlTouch screen, keyboard, mouse, camera head buttons, footswitch
Resolution1920 x 1080 px
Contrast ratio1200:1
Power supply100 – 240 VAC
Color temperature approx.5700 K
Line frequency50/60 Hz
Power consumption140 VA
Digital Image Processing ModuleIntegrated
Integrated pump for air insufflationNo
DVI-D output1
Storage optionUSB / network / internal
USB interface6 (4x rear, 2x side)
Microphone input2 (1x rear, 1x side)
Network connection via Ethernet interfaceYes
Camera connectors2, X-LINE and C-LINE
Stroboscopy microphone connection1
Kensington lock connection1
Image documentation (format)JPEG
Video documentation (format)MPEG4
Loudspeaker consumption3.2 Watt
Weight8.85 kg
Wipe disinfectionYes
IP protection classIPX0
Electrical protection classProtection class 1
Degree of safetyDepending on camera connection – CF or BF
VESA holderVESA 100
Dimensions (w x h x d)470 x 387 x 222 mm
Electrical protection class1
