Name: AUTOCON III 400 CE, 220-240V
Brand: Karl Storz Endoskope

Product details

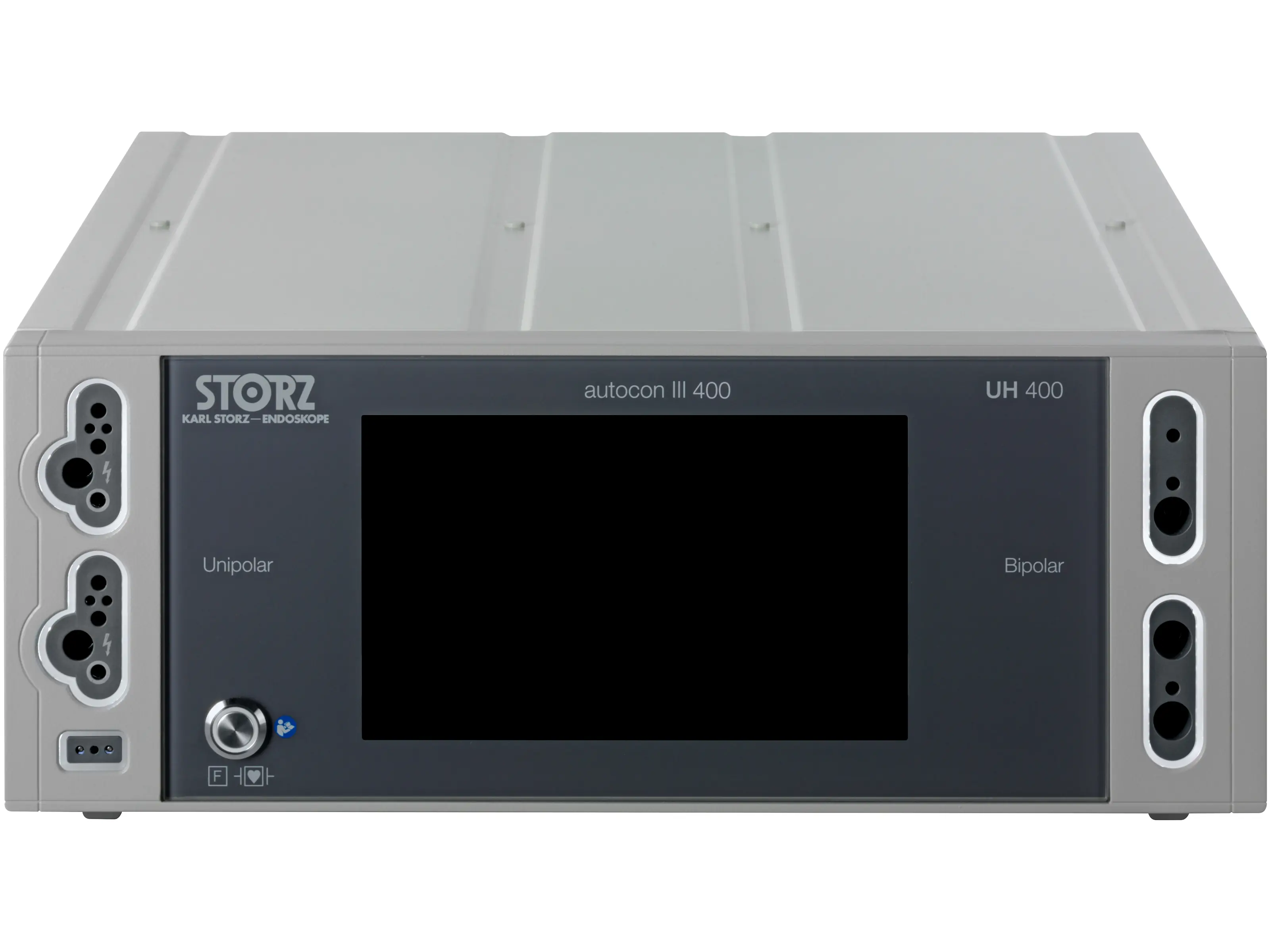

AUTOCON® III 400

The high-end generator AUTOCON® III 400 is the third generation of high frequency surgery units from KARL STORZ and is designed for use with both bipolar and unipolar instruments.

Touch screen control
Interdisciplinary use thanks to individually adjustable procedures
Further enhancement with regard to the performance of bipolar applications
Particularly suited to bipolar instruments from KARL STORZ
Can be combined with the s-pilot® to control smoke evacuation
Can be combined with the AUTOCON® III ARGON for argon-assisted surgery

Technical details
Documents & Films
Product group / field of application

Power bipolar max.	400 Watt
Power unipolar max.	400 Watt
Connection socket for bipolar instruments	2 x 2-pin US type, 3 x KARL STORZ
Connection socket for unipolar instruments	2x 3-pin US-type connector, 2x 4 mm connector (foot-switched), 1x 5 mm connector KARL STORZ, 1x 8 mm BOVIE (foot-switched)
Connection socket for neutral electrode	1x 2 pin
Power supply	220 – 240 VAC
Output frequency	0.35 / 1 MHz
Line frequency	50/60 Hz
Rated resistance bipolar	75 Ohm
Rated resistance unipolar	200 Ohm
Control via touch screen	Yes
Connection socket for footswitch	2
BiVascularSafe mode	No
Can be integrated into OR1™	With SCB control WU300
System requirements OR1™ integration	SCB R-UI software, Release 20090001-46 or higher
Certification	With CE certification
Brand	AUTOCON®
Width	447 mm
Depth	457 mm
Height	177 mm
Weight	12.5 kg
