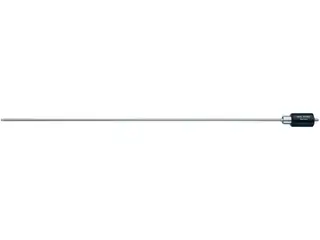

With the new 5 mm hysteroscope, the IBS® Tissue Removal Device combines the high image quality of a rod lens telescope with a minimal diameter, making it suitable for hysteroscopic procedures in the outpatient setting as well as the operating room. There is no thermal damage to tissue thanks to the purely mechanical removal of tissue. Resected tissue is immediately suctioned and collected in a tissue trap. In addition to polypectomy, the IBS® Tissue Removal Device can also be used to remove myoma or placental remnants and to perform biopsies. Here you can find the required setup:

10 Products

Page 1 from 1

Quantity

10 Products

Pressure adjustment during SURG applications	100 / 300 / 500 mmHg
Flow adjustment during SURG applications	Up to a max. 3.5 l/min l/min
Flow adjustment during HYS, SPINE and URO applications	200 / 400 / 600 ml/min
Flow adjustment during ART applications	1.5 / 2 / 2.5 l/min
Adjustment of the duration of pressure increase (boost function) during ART and URO applications	2 – 60 Sec.

Item no: 031523-10
Tubing Set, Irrigation, PC

Type of usage For single use
Function channel Irrigation
Function type W0559
Number of puncture cannulas 2
Sterile Yes

Page 1 from 1

Brand	DrillCut-X®
Type of usage	Reusable
Gripping surface	34 x 12.77 x 945 mm

Distal end shape	Rounded
Number of poles	Bipolar
Type of usage	Reusable
Brand	IBS®
Working length	315 mm

Number of poles	Bipolar
Connection on the unit side	Connection compatible with KARL STORZ / Erbe
Length	300 cm
RFID coding system	No

Power supply	100 – 240 VAC
Line frequency	50/60 Hz
Width	380 mm
Height	125 mm
Depth	305 mm

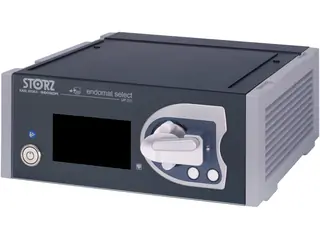

Pump function	Suction or irrigation pump
Unit type	Roller pump
Power supply	100 – 240 VAC
Width	370 mm
Height	124 mm

Type of usage	For single use
Function channel	Suction
Function type	W0472
Number of puncture cannulas	–
Number of suction tubes	1
